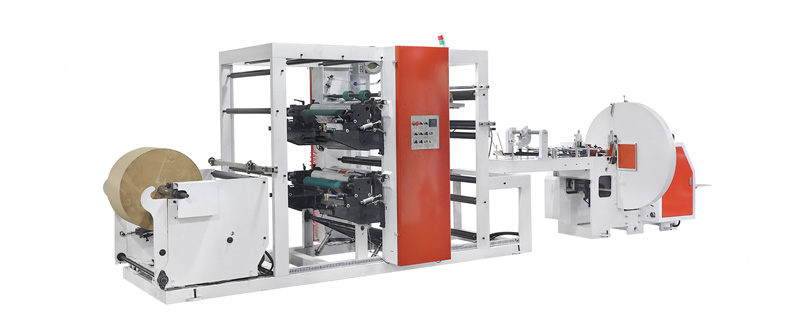

Pointed Bottom Bag Making Machine with Inline 2-Colors Printing XKJD-400

Pointed Bottom Bag Making Machine with Inline 2-Colors Printing
  • Pointed Bottom Bag Making Machine with Inline 2-Colors Printing
Request a quote
Download

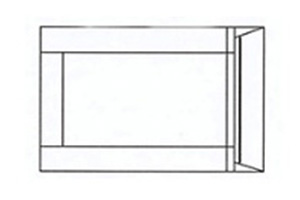

Paper Bag Making Process

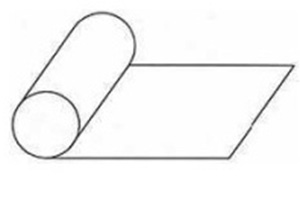

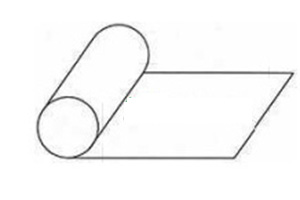

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingMaterial loading

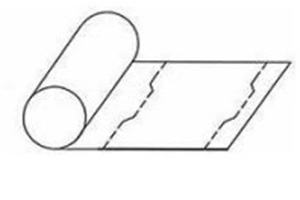

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingInline Printing

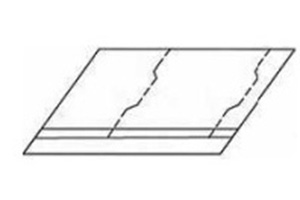

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingSide glue

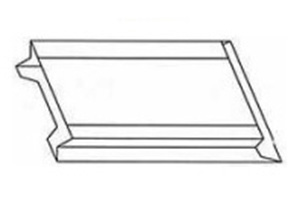

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingForming

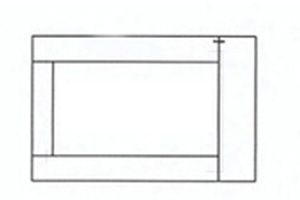

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingInterrupt

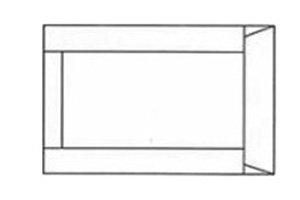

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingBottom glue
  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingBottom folding

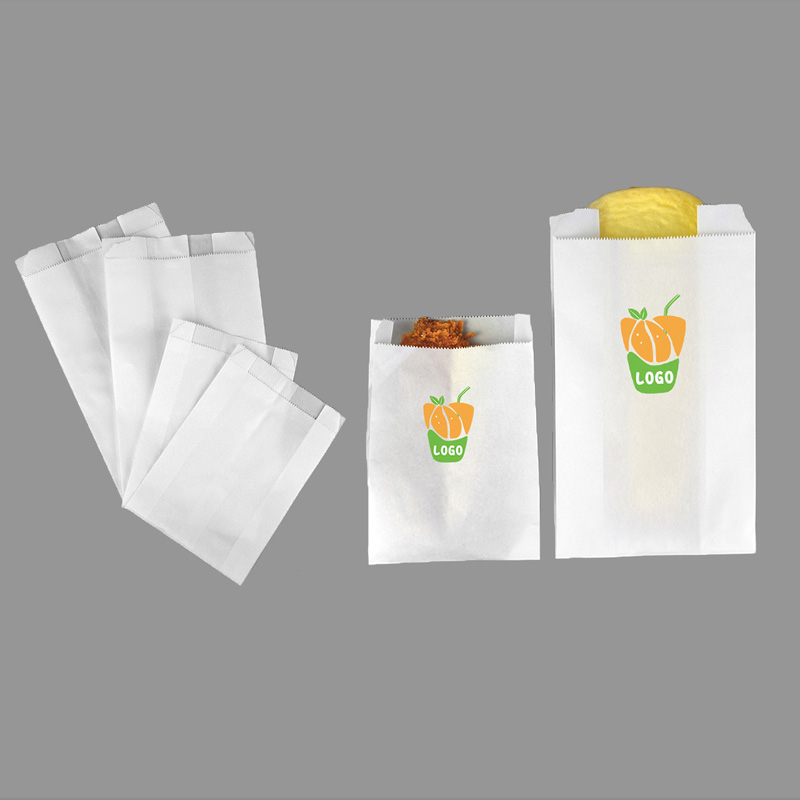

  • Pointed Bottom Bag Making Machine with Inline 2-Colors PrintingFinished product
Specifications
  • Model: XKJD400
  • Paper bag length: 120-480mm(L)
  • Paper bag width: 70-260mm(W)
  • Paper thickness: 40-80g/㎡
  • Machine speed: 60-400pcs/min
  • Paper roll width: 200-740mm
  • Side gusset depth: 20-100mm
  • Machine power: 7.5kW
  • Machine weight: 1850kg
  • Machine size: 4640x1470x1700mm
Features
  • The paper bag machine is specially designed for making pointed bottom paper bags with/ printed patterns. The paper bags are mostly used for packing food such as bread, pastries, treats.
  • Paper bags with various specifications can be made by the bag making machine.
  • Featuring high production efficiency, this paper bag making machine is an ideal choice for bag manufacturers.
  • It’s integrated with many functions including hydraulically controlled roll loading, unwinding, web guiding system, tension control, inline printing, side gluing, photoelectric sensor.
  • The paper bag making machine features a PLC control system with HMI touch screen for precise control, and a servo system for the control of paper bag length.
  • The machine comes with constant tension control for unwinding, servo motor, variable frequency drive, inverter motor, etc.
  • The paper bag machine will stop automatically when no material is fed to the machine.
  • Designed with an enclosed automatic gluing and forming system;
  • Side mounted work table makes it easy to operate.
Details
    1. Pointed Bottom Bag Making Machine

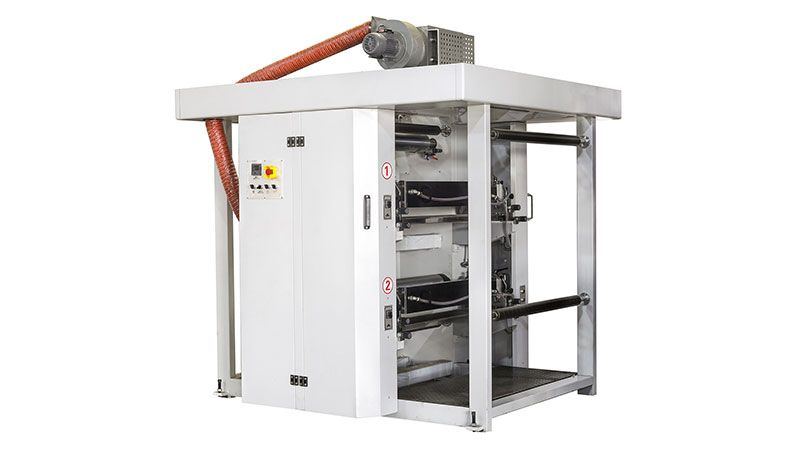

    2. 2 Color inline printing
    1. Pointed Bottom Bag Making Machine

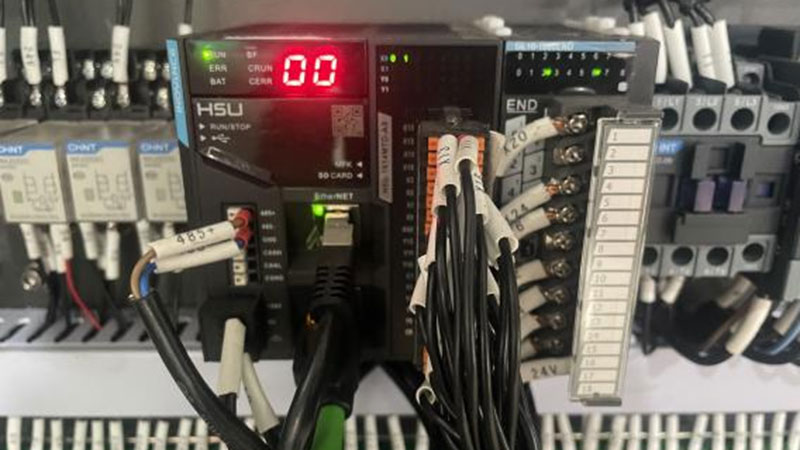

    2. PLC-based motion controller
    1. Pointed Bottom Bag Making Machine

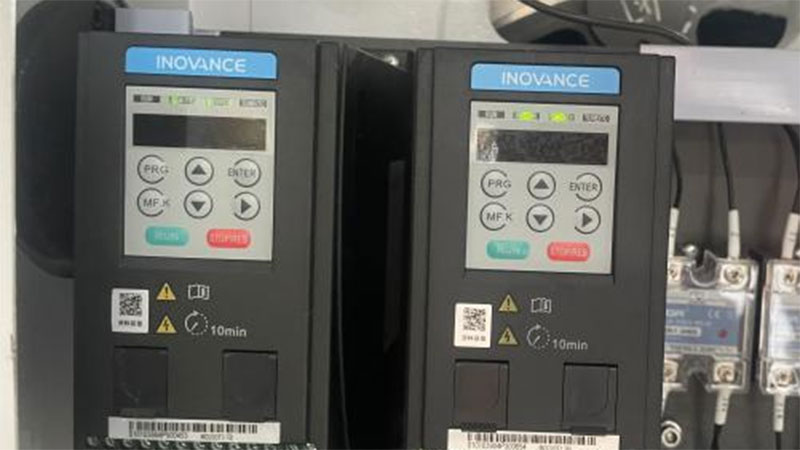

    2. Inverter
    1. Pointed Bottom Bag Making Machine

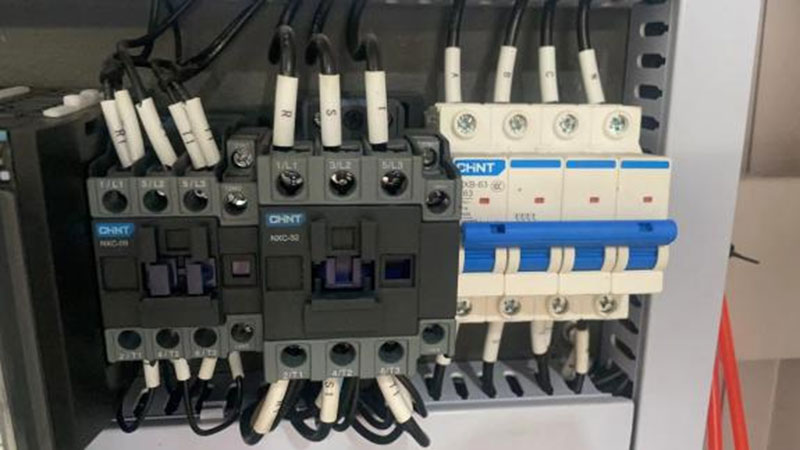

    2. Low-voltage electrical products
    1. Pointed Bottom Bag Making Machine

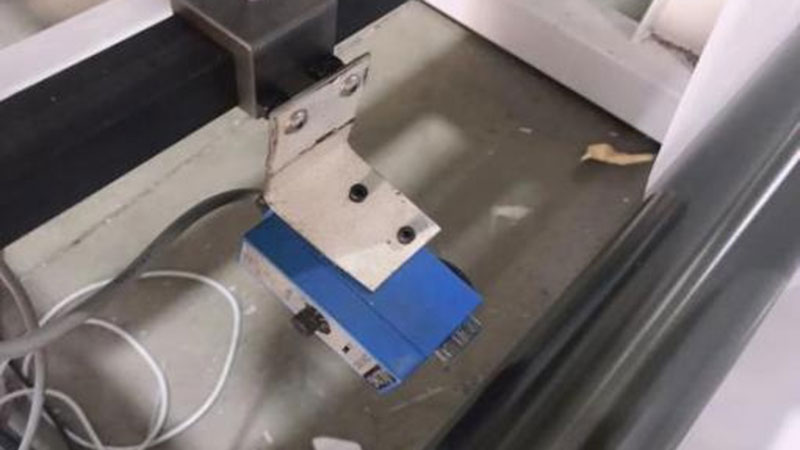

    2. Web guiding system
    1. Pointed Bottom Bag Making Machine

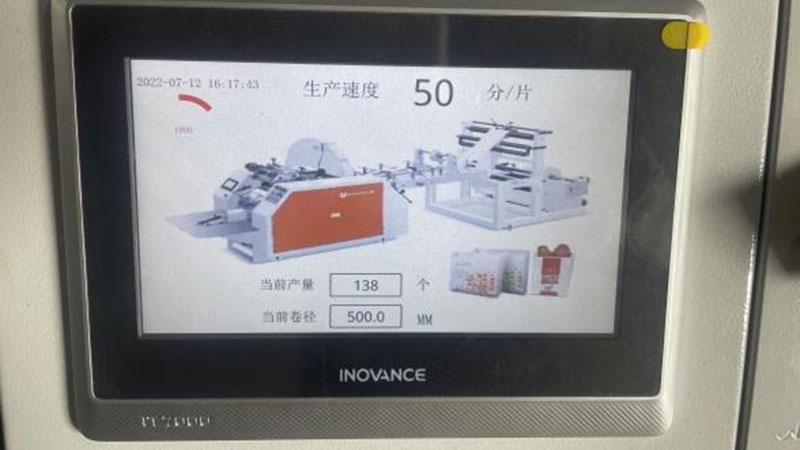

    2. HMI touchscreen
    1. Pointed Bottom Bag Making Machine

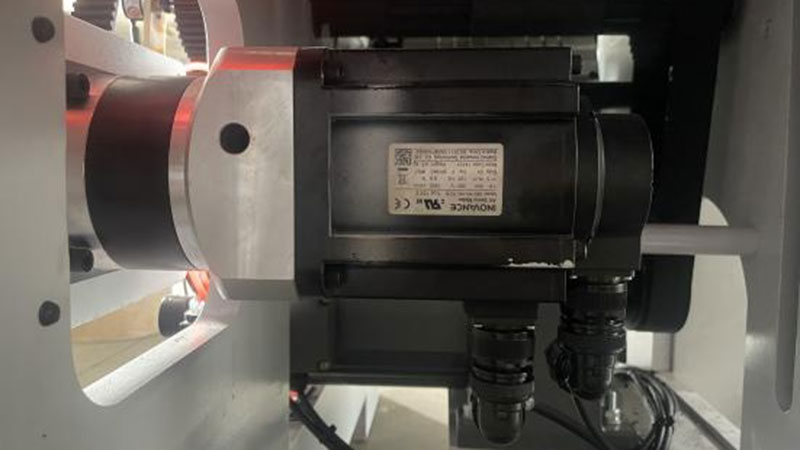

    2. Servo motor
    1. Pointed Bottom Bag Making Machine
    2. Bag counting unit
