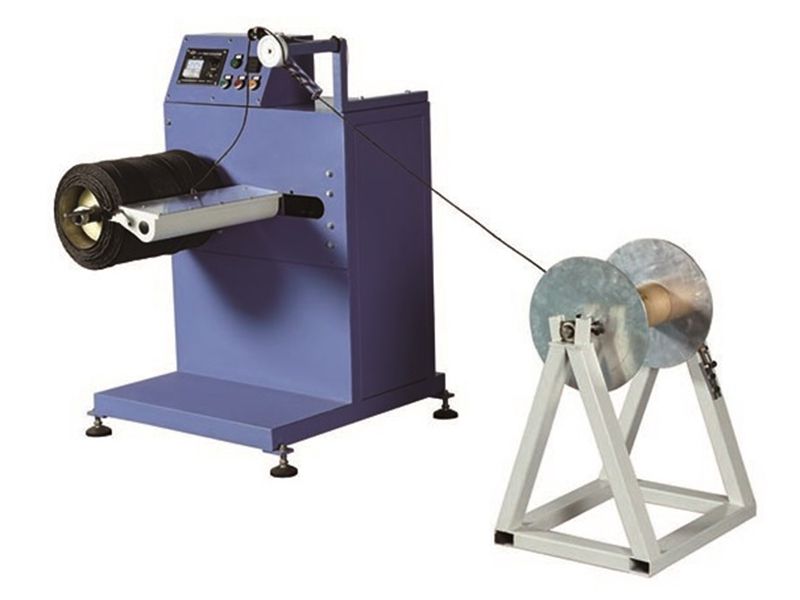

Paper Rope Rewinding Machine XKFJ-400M
Paper Rope Rewinding Machine XKFJ-400M

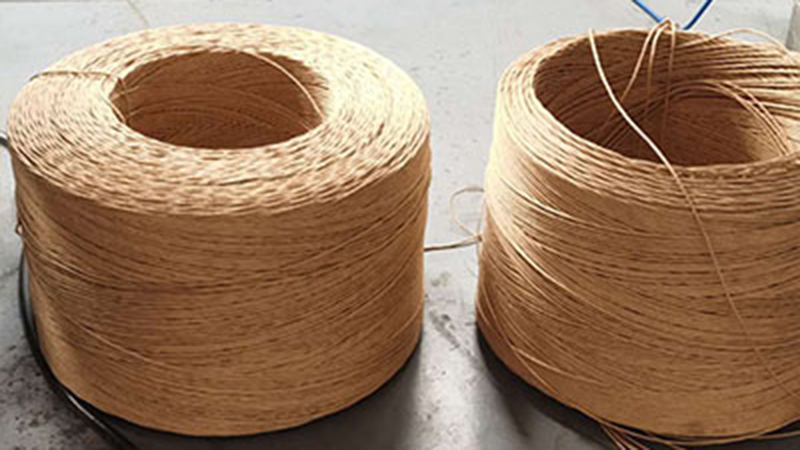

Xinke paper rope rewinding machine is mainly used for high-speed rewinding of multiple small twisted paper rolls into a large diameter paper roll. The rope rewinder can be used together with paper handle making machine for continuous production with minimal stoppage, thus greatly improving production efficiency and quality for paper rope handle.
Request a quote
Specifications
- Model: XKFJ-400M
- Inner diameter of virgin rope roll: 76 mm
- Inner diameter of final rope roll: 180 mm
- Outer diameter of final rope roll: 400-500mm
- Max. production speed: 80-150M/min
- Input voltage: 380V
- Total power: 2.2kW
- Total weight: Approx. 150kg
- Overall dimension (L×W×H): 1050mm×800mm×1200mm
