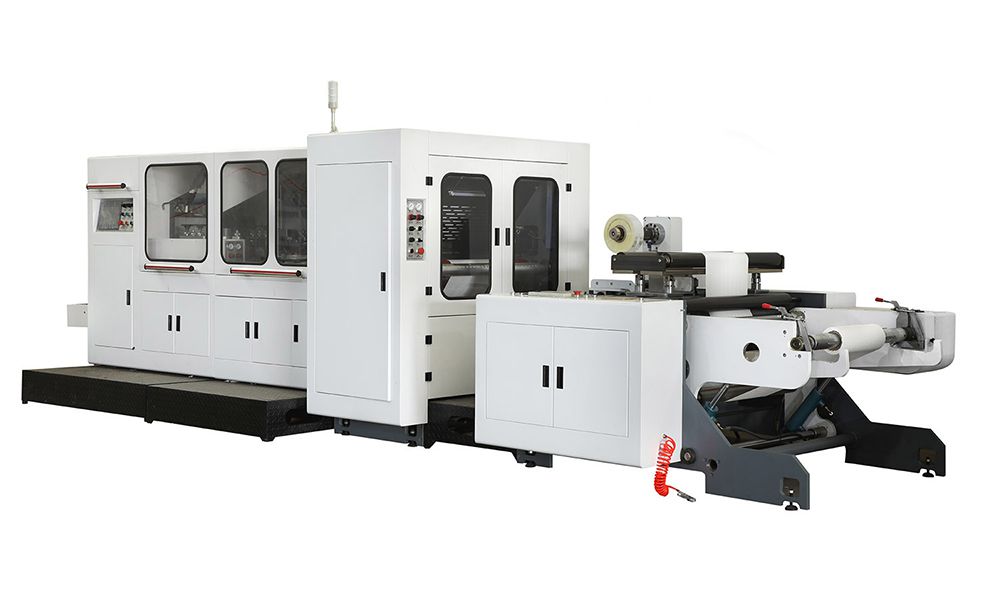

Flat and Satchel Paper Bag Making Machine with 2 Color Flexo Printer XKJD350
Flat and Satchel Paper Bag Making Machine with 2 Color Flexo Printer XKJD350
Automatic Roll-fed Paper Bag Making Machine for Paper Food Bag

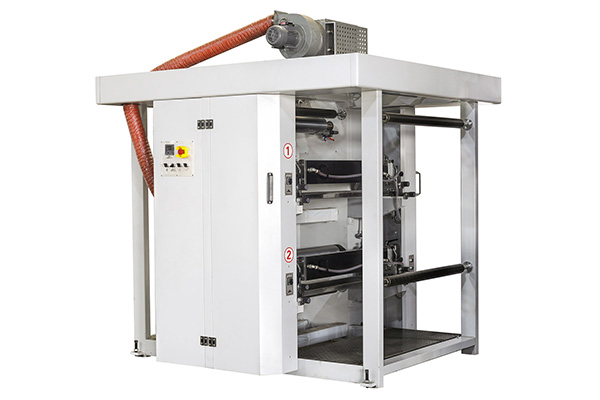

Our XKJD350 flat and satchel paper bag making machine was developed in response to the needs of bakery shop, KFC and McDonalds where sharp bottom and satchel paper bags are essential for takeaway packaging. This paper bag machinery is capable of implementing automatic bag production in one process from paper roll unwinding, printing, pre-cutting, side gluing, tube forming, bottom folding, to final bag collection. The 2 color flexographic printing press is used for in-line application with paper bag making machine to print desired logos or patterns on paper bags, it is also possible to produce non-printed paper bags through the settings menu of the printer.

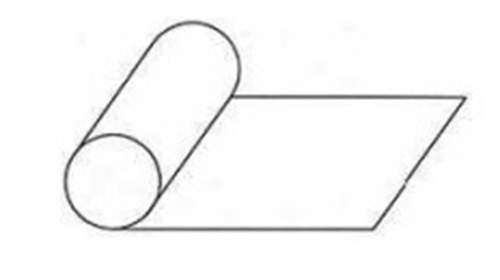

Load Material

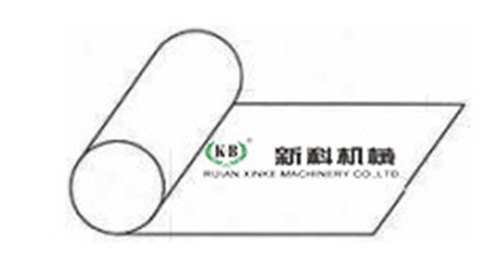

Inline Printing

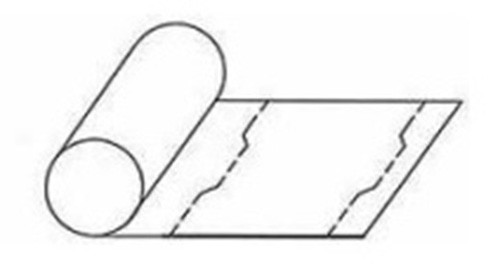

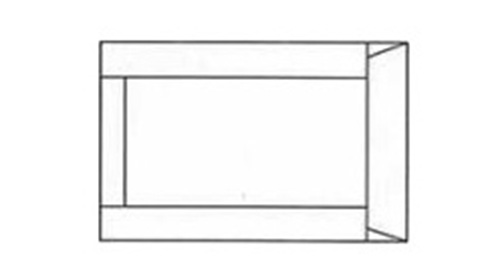

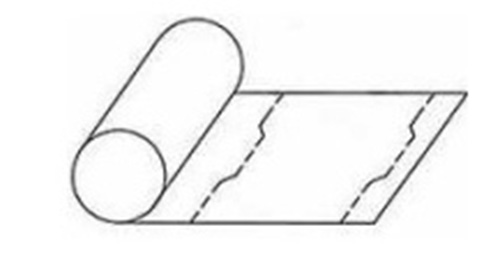

Precut

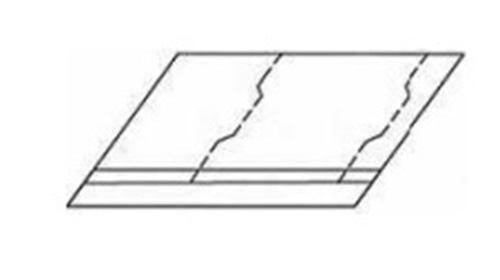

Side glue

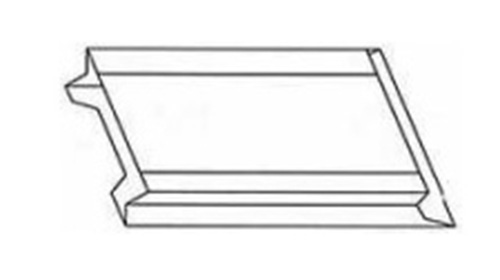

Forming
Snap
Bottom glue

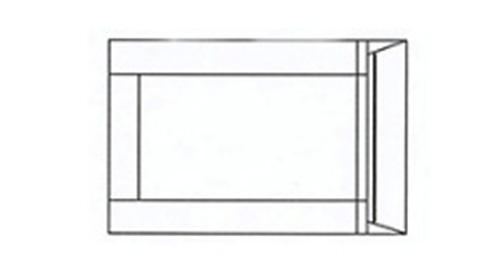

Folding bottom

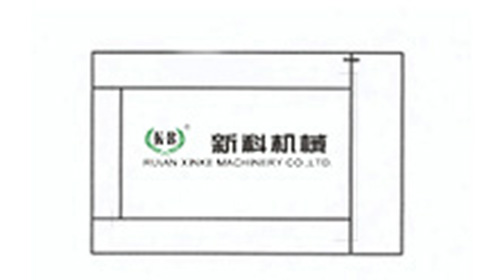

Finished bag
- Model: XKJD-350
- Bag tube length: 155-400 mm (4 hub) 405-765mm (2 hub)
- Paper bag length: 150-395 mm (4 hub) 400-760mm (2 hub)
- Paper bag width: 80-350mm
- Side gusset: 10-60mm
- Paper bag production speed: 17mm
- Paper bag production speed: 50-500pcs/min
- Paper roll width: 220-970mm
- Max. Paper roll diameter: Φ1200mm
- Inner diameter of paper core: Φ76mm (3")
- Paper thickness: 35-80g/m2
- Working air source: ≥12m³/min, 0.6 (MPa)
- Machine power: 380V 3 (phase) 4 (lines) 20kw
- Machine weight: 6000kg
- Machine size: 8500×2250×1850mm
- Model: XKFP21000
- Max. Printing material width: 1000mm
- Max. Printing width: 960mm
- Printing length: 230-800mm
- Printing speed: 5-100m∕min
- Register precision: ≤±0.20mm
- Thickness of plate (including the thickness of double-sided adhesive): 2.28mm
-
-

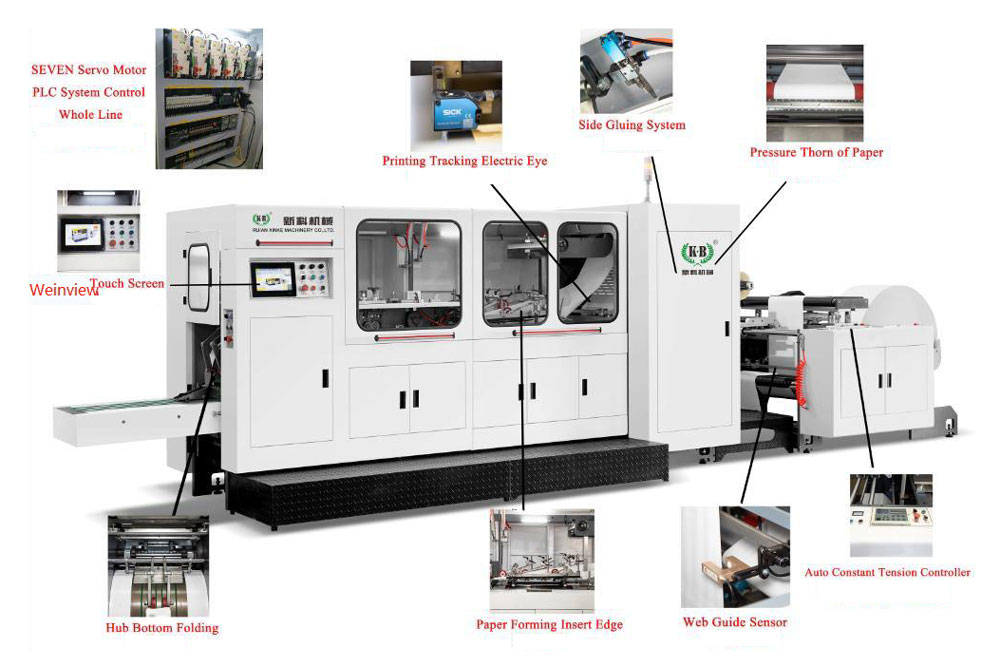

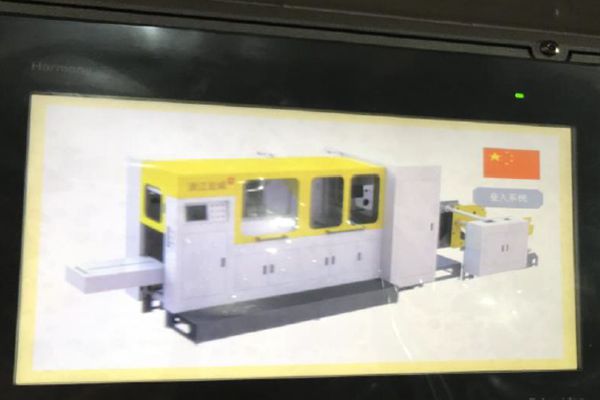

- Taiwan Weinview touch screen HMI with clearly displayed function keys allows user to easily operate and see the real-time working status of the machine.
-
-
-
- Mitsubishi PC-based motion control system coupled with high-speed EtherCAT bus ensures that the paper bag machine runs stably at high speed.
-
-
-

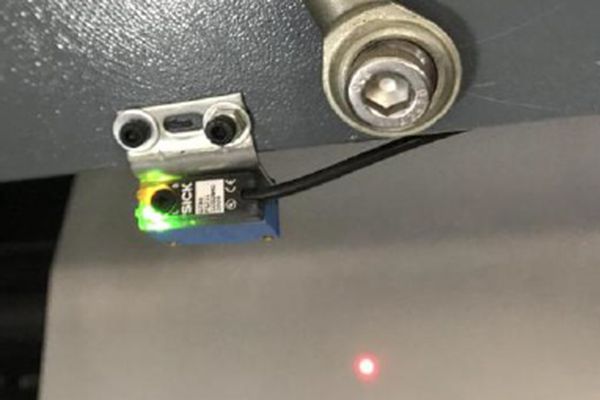

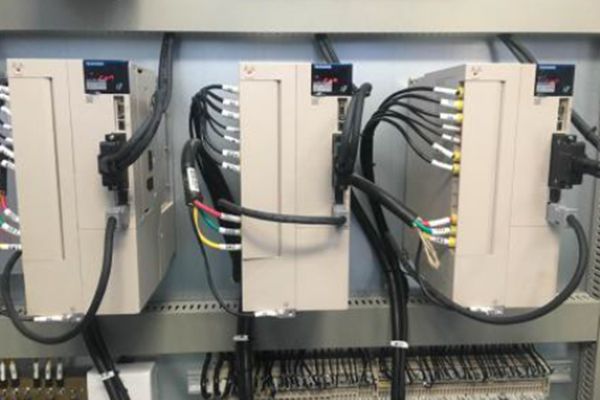

- Mitsubishi servo motor in combination with Germany original SICK photoelectric sensor enables the precise size of printed paper bag.
-
-
-

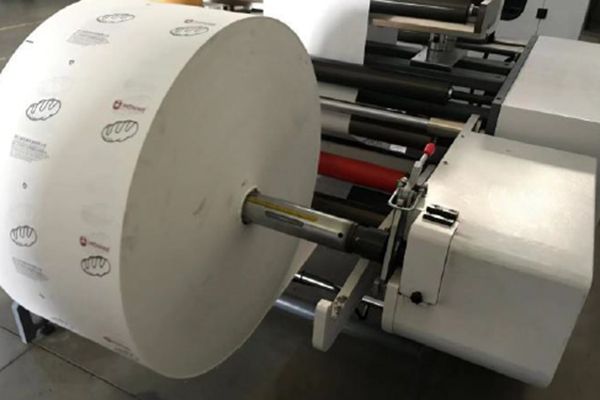

- Hydraulic roll lifting system of unwind unit enables paper roll to be easily loaded and unloaded, automatic constant tension control provides reliable unwinding.
-
-
-

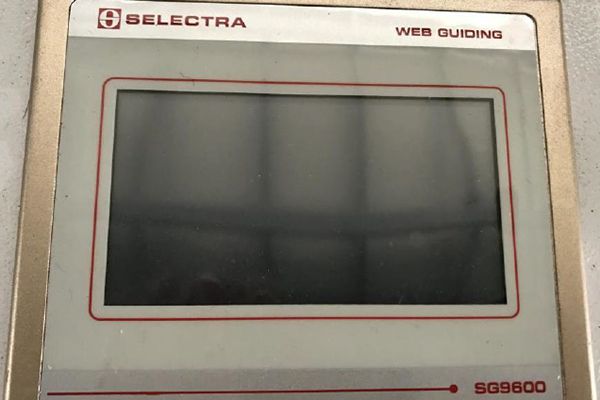

- Italian SELECTRA web guide system is adopted for control the position of the winded paper roll with minimal time.
-
-
-
- 1/2/3/4/5/6-color print can be realized in the inline printing section, so that paper bags with various printed patterns can be manufactured.
-
