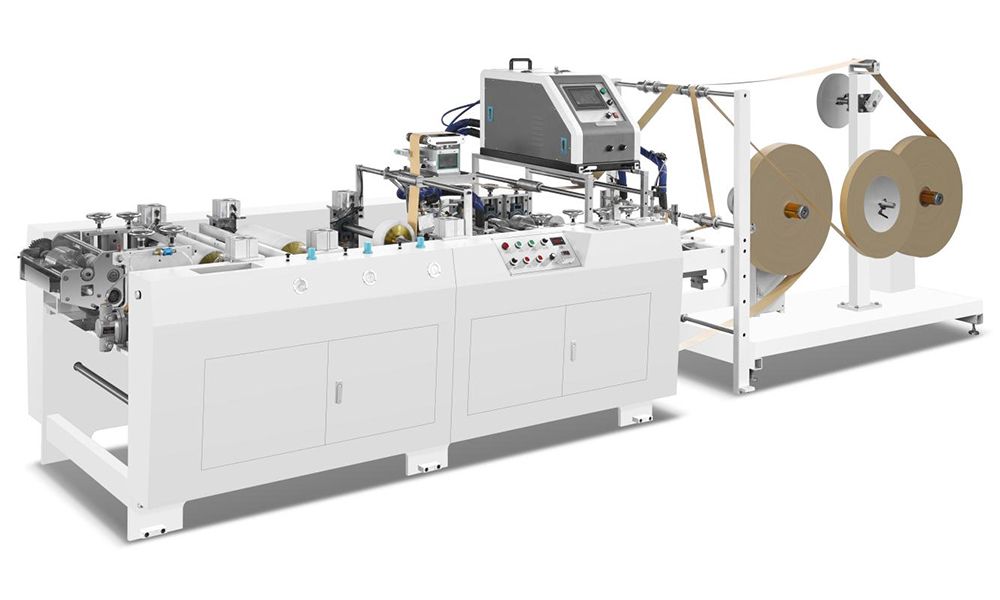

Semi-auto Flat Handle Making Machine XKBS-02
Semi-auto Flat Handle Making Machine XKBS-02
This semi-auto flat handle making machine is capable of turning four rolls of prepared paper into flat paper bag handles in one process. It can be used together with gluing system and paper bag making machine to form a complete paper bag production line for mass production with high efficiency. This paper handle making machine is an ideal choice for paper packaging manufacturers who want high speed bag handle machine with limited budget.
- Model: XKBS-02
- Handle center distance (A): 108mm
- Paper handle width (B): 12mm/15mm
- Paper handle height (C): 100mm
- Paper patch width (D): 40mm
- Paper patch length (E): 152/190mm
- Paper handle length: 352mm
- Paper thickness: 100-120gsm
- Production speed: 6000pairs/h
- Voltage: 380V
- Total power: 10kW
- Total weight: Approx. 4000kg
- Overall dimension (L×W×H): 5000×1500×1500mm
- Glue type: Hot-melt glue
-
-

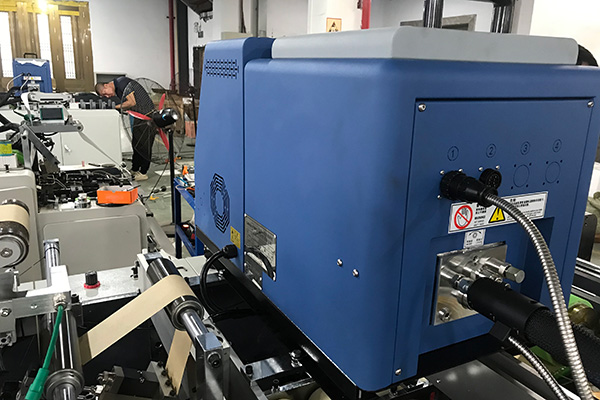

- High quality hot melt gluing system from Taiwan features long service life.
-
-
-

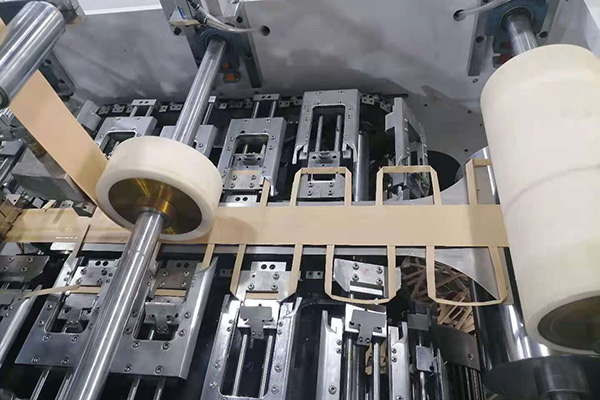

- Paper handle cutting
-
-
-

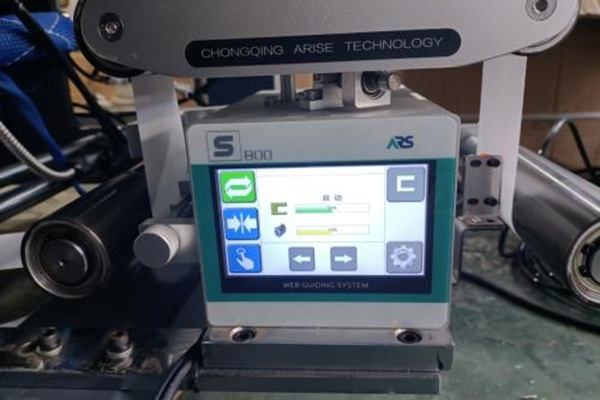

- By using of Arise EPC system, the die-cut style handle can be precisely patched to add strength and durability.
-
-
