Flat and Satchel Paper Bag Making MachineXKJD-270

Automatic Roll-fed Paper Bag Making Machine for Paper Food Bag

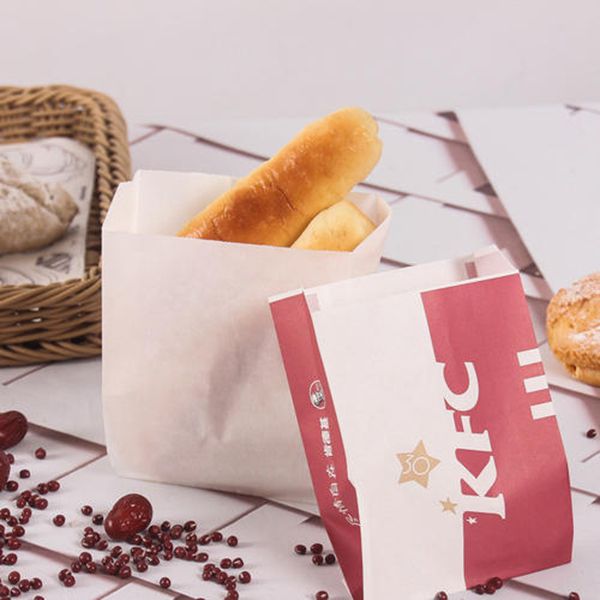

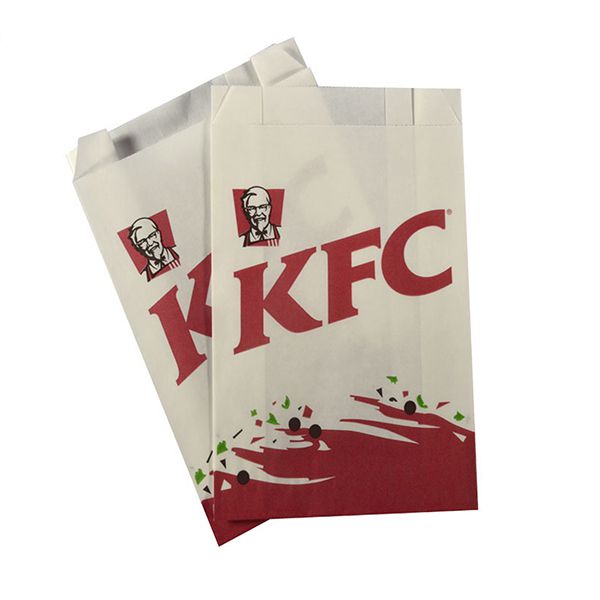

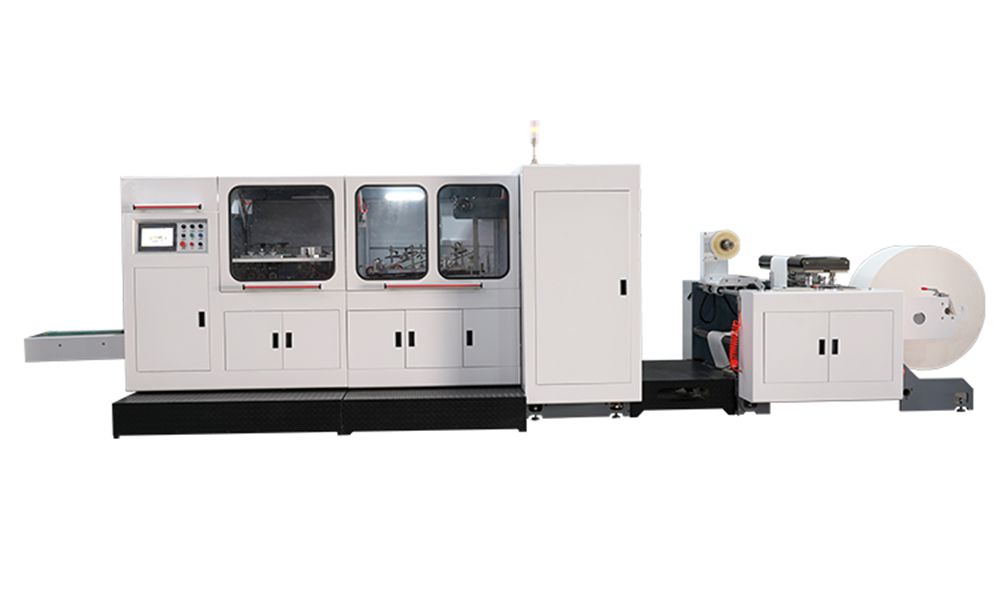

XKJD-270 automatic roll-fed paper bag making machine is a high-speed model designed for manufacturing flat and satchel paper bags (sometimes also known as V-bottom paper bags or sharp bottom paper bags). This flat and satchel paper bag making machine can automatically accomplish the entire process in one pass, including paper roll unwinding, pre-puncturing, side gluing, tube forming, cutting, bottom folding, bottom gluing and final bag collection. The paper bag machine is featured by stable running, high speed, low power consumption and high production efficiency. By simply equipping with in-line printer or window patching unit, this model of paper bag making machine can also manufacture printed flat paper bags or satchel paper bags with clear windows. This flat and satchel paper bag making machine is an ideal solution to manufacture paper bread bags, paper sandwich bags, as well as fast food paper bags for KFC and McDonalds.

Request a quote
Download
Paper Bag Making Process
  • Flat and Satchel Paper Bag Making MachineUnwinding
  • Flat and Satchel Paper Bag Making MachinePre-cutting
  • Flat and Satchel Paper Bag Making MachineSide gluing
  • Flat and Satchel Paper Bag Making MachineGusset forming
  • Flat and Satchel Paper Bag Making MachineSeparating
  • Flat and Satchel Paper Bag Making MachineBottom gluing
  • Flat and Satchel Paper Bag Making MachineBottom folding
  • Flat and Satchel Paper Bag Making MachineFinal bag
Specifications
  • Model: XKJD-270
  • Bag tube length: 117-360mm（4 hub）365-450mm (2 hub)
  • Paper bag length (L): 100-355mm（4 hub）360-445mm（2 hub）
  • Paper bag width (W): 80-270mm
  • Side gusset (M): 10-60mm
  • Paper bag flap (H): 17mm
  • Paper bag production speed: 50-500pcs/min
  • Paper roll width: 220-810mm
  • Max. Paper roll diameter: Φ1200mm
  • Inner diameter of paper core: Φ76mm (3")
  • Paper thickness: 35-80g/m²
  • Working air source: ≥0.12m³/min, 0.6 (MPa)
  • Machine power: 380V: 3 (phase) 4 (line) 20kw
  • Machine weight: 5000kg
  • Machine size: 7100x2050x1850mm
Features
    1. Flat and Satchel Paper Bag Making Machine

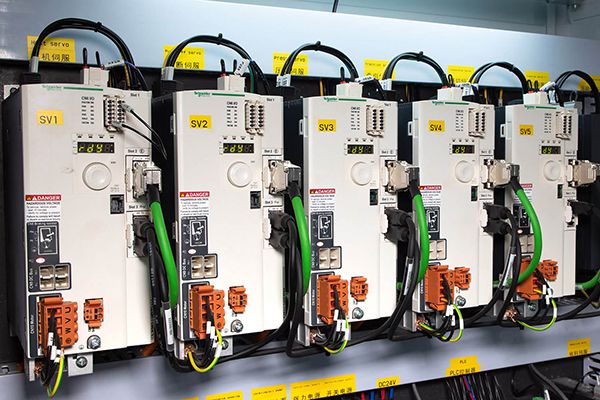

    2. Servo motor control system provides high speed and high precision motion control, the length of paper bag can be simply adjusted via HMI interface.
    1. Flat and Satchel Paper Bag Making Machine
    2. The cut-off unit is equipped with high speed rotating knife, and can be set up with either serrated cut or straight cut, giving a very smooth cutting action.
    1. Flat and Satchel Paper Bag Making Machine

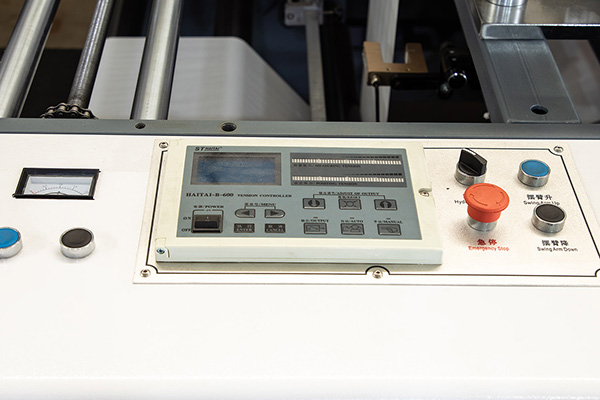

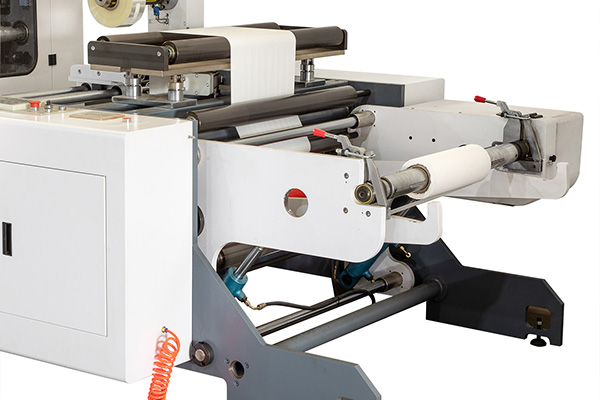

    2. The unwind unit uses magnetic particle brake for web tension control, hydraulic system enables paper roll to be easily loaded.
    1. Flat and Satchel Paper Bag Making Machine

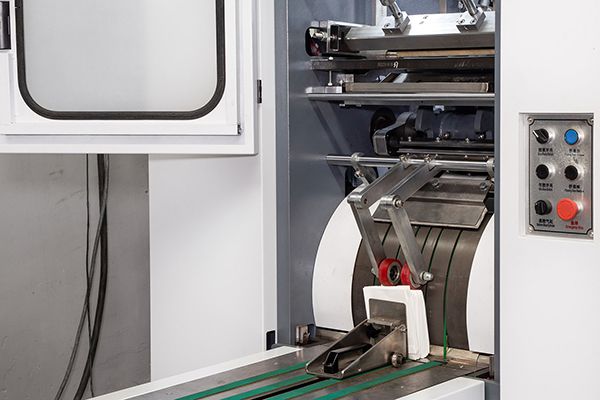

    2. The quantity of bag to be packaged can be set, and automatic counting function makes bag collection easier.
Details
    1. Flat and Satchel Paper Bag Making Machine

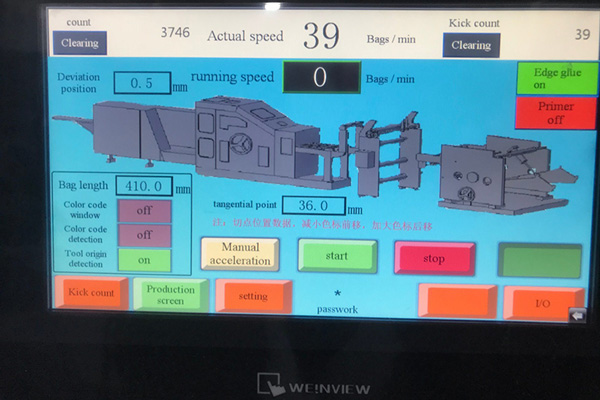

    2. Weiniew touch screen from Taiwan provides easy operation and control.
    1. Flat and Satchel Paper Bag Making Machine

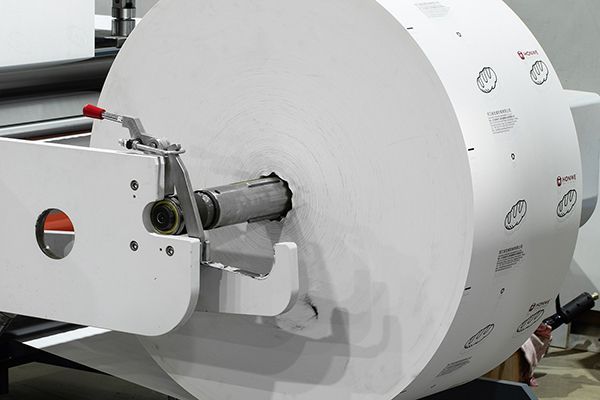

    2. The loading/unloading of the paper roll is performed with a hydraulic lift. The unwinding section adopts constant tension control.
    1. Flat and Satchel Paper Bag Making Machine

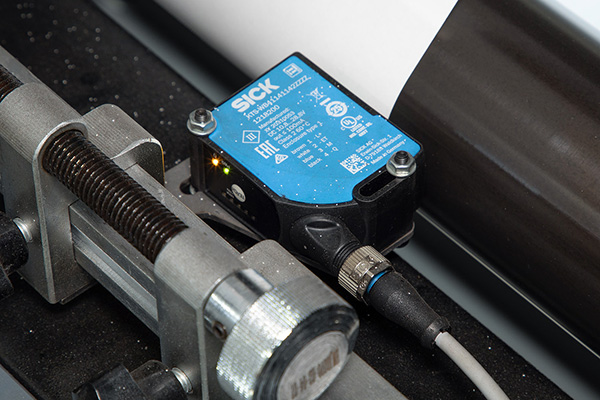

    2. Mitsubishi servo system and SICK sensor guarantee highly accurate bag size in an efficient manner.
    1. Flat and Satchel Paper Bag Making Machine
    2. The web guide system is designed with German Bedook sensor, greatly reducing adjustment time for paper rolls.
