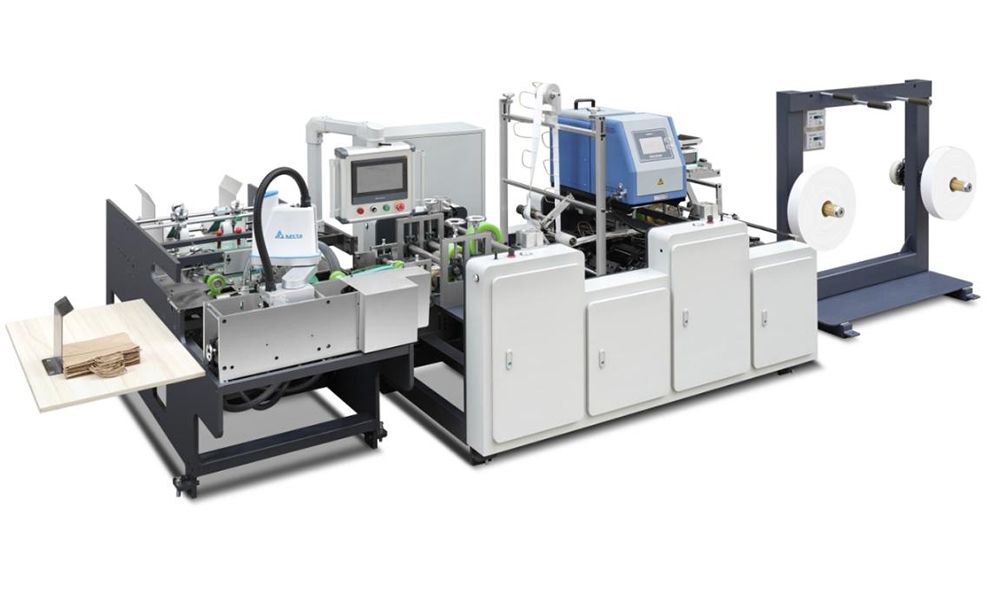

Automatic Twisted Handle Making Machine XKYS-01
Automatic Twisted Handle Making Machine XKYS-01
This automatic twisted handle making machine is ideal for in-line application with paper bag making machine. This handle making machine can efficiently manufacture twisted paper bag handles by attaching twisted paper cord on patch paper roll. With functions of automatic counting and gluing, it can greatly improve the working efficiency of subsequent processing operations.
Request a quote

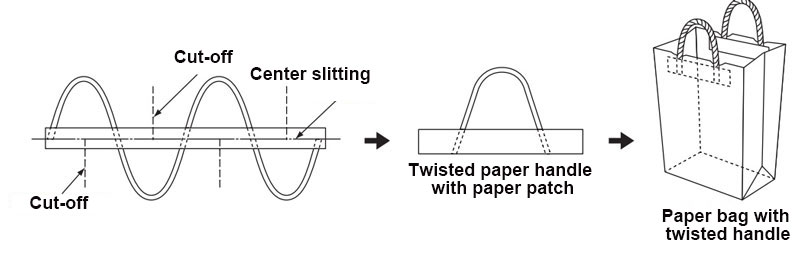

Paper Bag Making Process
Specifications
- Model: XKYS-01
- Patch length (A): 152/190mm
- Handle center distance (B): 75/95mm
- Patch width (C): 30/40mm
- Paper rope length: 360mm
- Paper rope height (D): 100mm
- Paper rope diameter: Ø2.5~5mm
- Bag width: 250-400mm
- Bag length: 250-450mm
- Top opening size: Over 130mm
- Production speed: 30-35 pcs/min
- Servo motor power: 750W
- Power: 380V, 10kW, 50HZ
- Overall dimension (L×W×H): 6000×1600×1500mm
Features
-
-

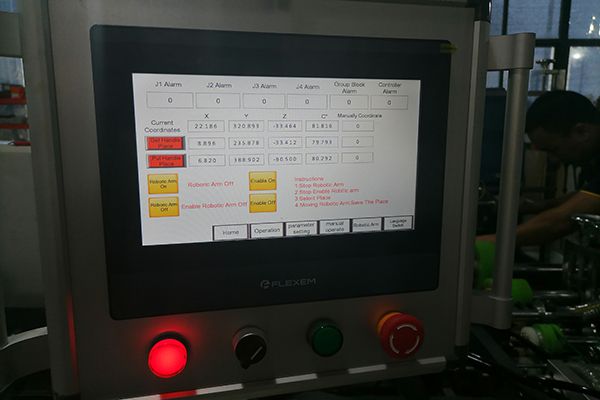

- FLEXEM touch screen HMI with clearly displayed function keys allows user to easily operate and see the real-time working status of the machine.
-
-
-

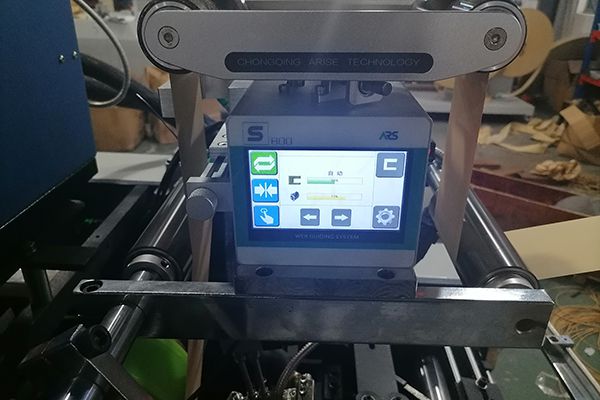

- Automatic web guiding system keeps patch paper positioned at right place.
-
-
-
- High grade hot melt glue system helps reduce costs by eliminating error likelihood.
-
-
-

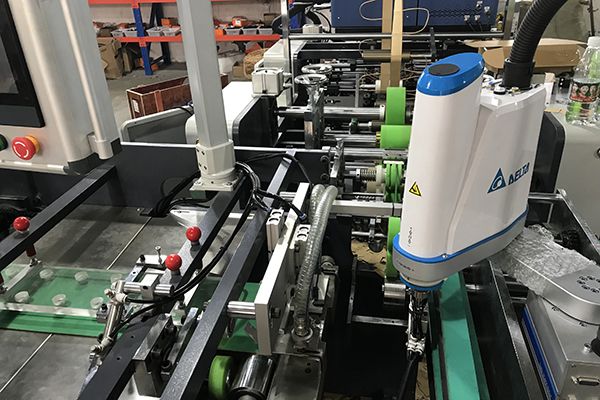

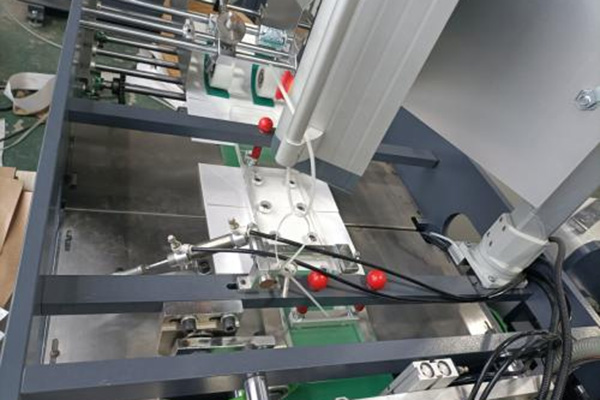

- Taiwan DELTA robot provides reliable performance and prolonged service life.
-
-
-

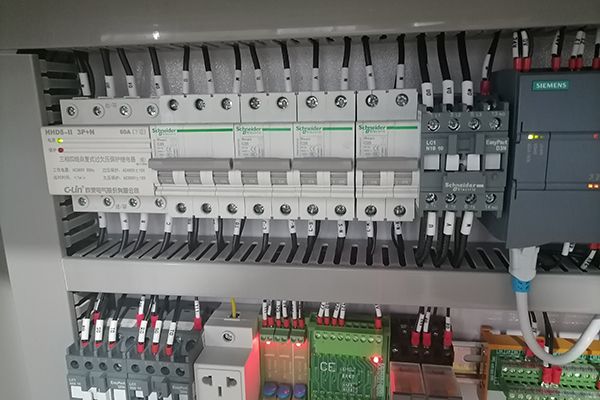

- Siemens servo motor and inverter.
-
-
-
- Automatic paper bags delivery
-
Other Products
-

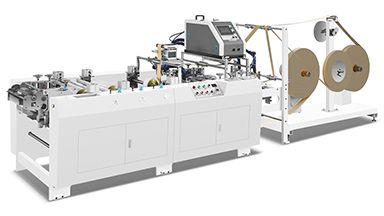

- Semi-auto Flat Handle Making MachineThis semi-auto flat handle making machine is capable of turning four rolls of prepared paper into flat paper bag handles in one process.Learn More
-
- Automatic Flat Handle Making MachineXKBS-01 automatic flat handle making machine integrates functions of handle making and attaching to the paper bag.Learn More
-
- Horizontal Slitter RewinderXKFQ-1600 horizontal slitter rewinder is constructed to convert a wide range of large diameter roll products like kraft paper and printed paper to narrow...Learn More
-
- Twisted Paper Rope Making MachineOur twisted paper rope making machine is primarily designed to produce twisted paper cords using kraft paper roll as raw material.Learn More
-

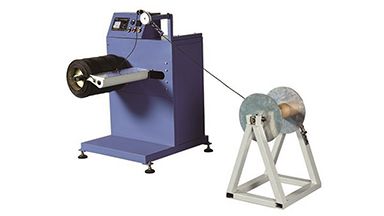

- Paper Rope Rewinding MachineXinke paper rope rewinding machine is mainly used for high-speed rewinding of multiple small twisted paper rolls...Learn More
-

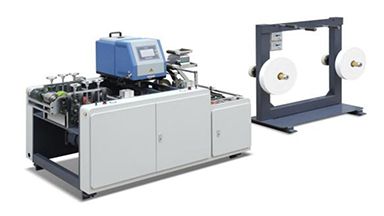

- Semi-auto Twisted Handle Making MachineOur semi-auto twisted handle making machine is applied to produce round handles using twisted paper cords and glue.Learn More
