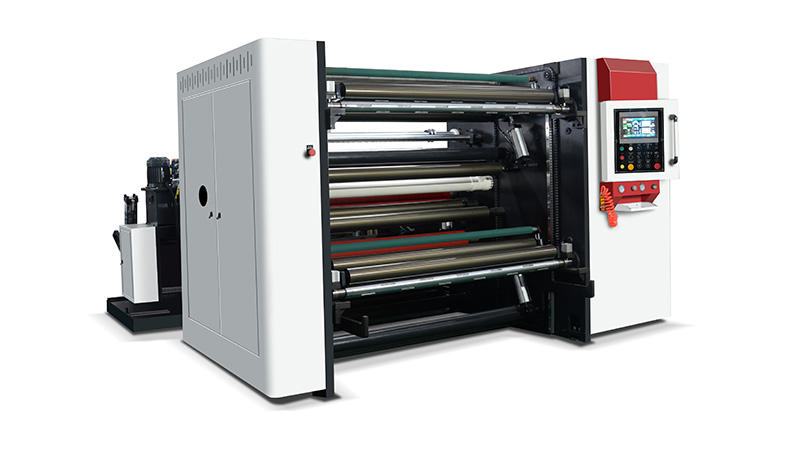

Computerized High-Speed Slitting Machine XKA-1300A
Computerized High-Speed Slitting Machine XKA-1300A
The high speed slitting machine is widely used for slitting various packaging materials such as paper, PET/PVC/PP/PE film. Specifically speaking, it’s also an ideal machine for slitting paper-plastic composites, double sided adhesive sheets, whiteboard paper, specialty paper, coated paper with the weight range of 20-300g/m².
Request a quote
Specifications
- Model: 1300
- Slitting width: 20-300g/㎡
- Max. unwinding roll diameter: ⌀1400mm
- Max. rewinding roll diameter: ⌀1000mm
- Max. slitting width: 40-1300mm
- Air shaft diameter: 3 inch
- Accuracy: ±0.2mm
- Slitting speed: 50-300m/min
- Total power: about 26kW
- Machine size: 4500×3200×1950mm (LxWxH)
- Machine weight: about 4500kg
Features
- The slitting machine is synchronously controlled by 3 servo motors, and features an automatic taper tension control system and center surface winding.
- High-speed variable frequency control ensures stable running.
- Automatic operations including meter counting, alarm, machine shutdown allow for high efficiency and operational safety.
- The air shaft is used for winding and unwinding.
- The web guiding system is designed with a photoelectric sensor to realize precise web guiding and edge position control.
- The slitter uses high quality circular knives, and the blade can be custom designed to fit your cutting application.
- The waste after cutting can be automatically discharged.
- Air shaft for automatic roll loading; roll loading device with shaftless structure can be optionally equipped.
Main Configurations
-
-

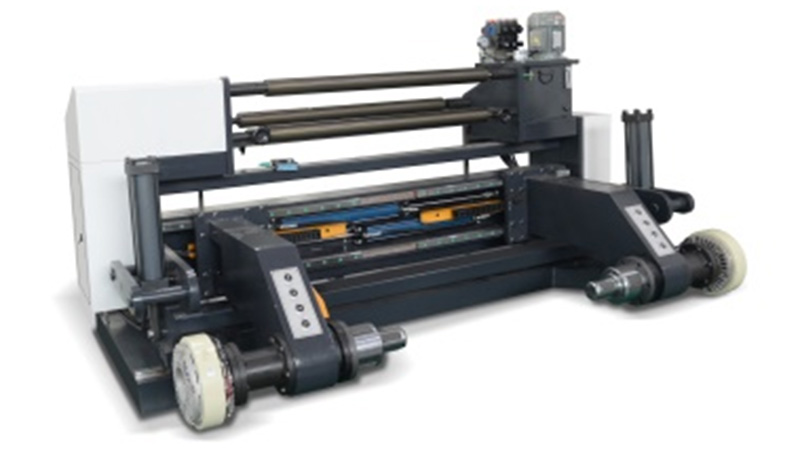

- Unwinding Unit (optional shaftless loading)
3 inch air shaft for automatic roll loading
Web guiding system with a photoelectric sensor

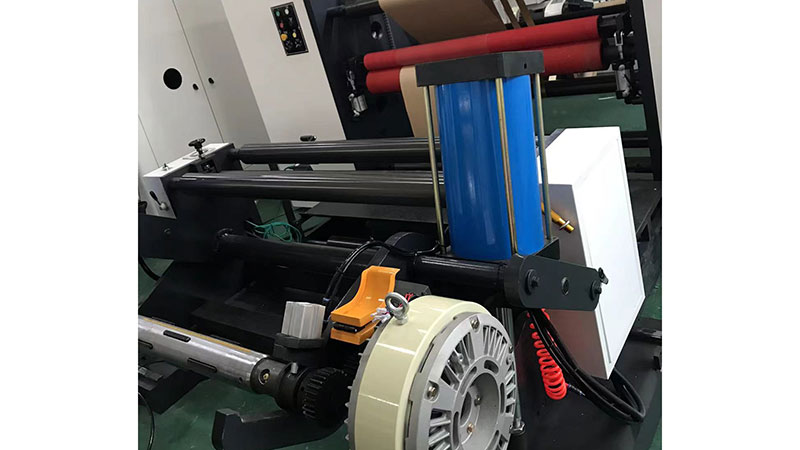

Tension controller with magnetic powder brake
-
-
-
- Main Machine
Pneumatic clamping
Slitting controlled by air cylinder
-
-
-

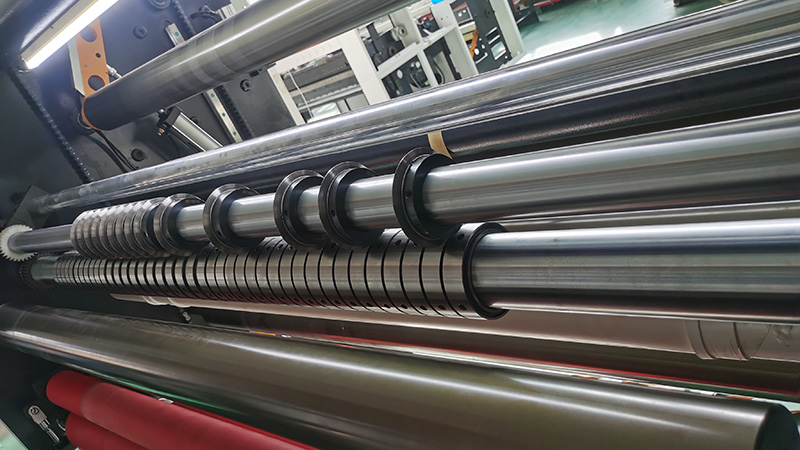

- Slitting Unit
Circular blades with manual adjustment function
-
-
-

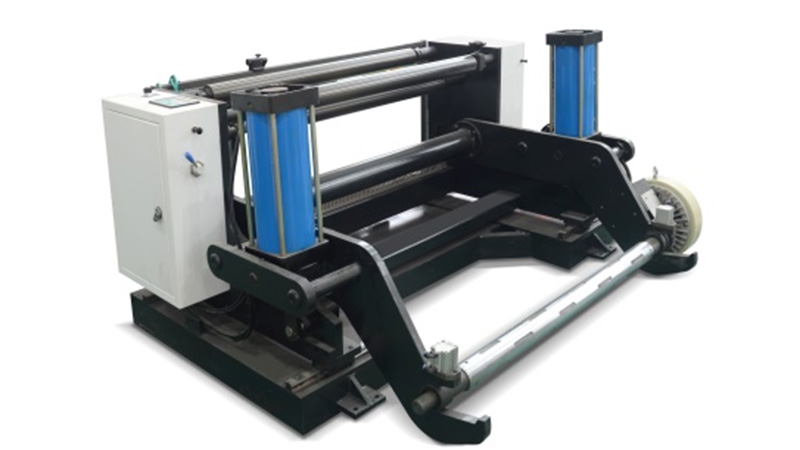

- Winding Unit
Two air shafts for rewinding; automatic rewinding, roll loading, feeding and discharging
-
-
-

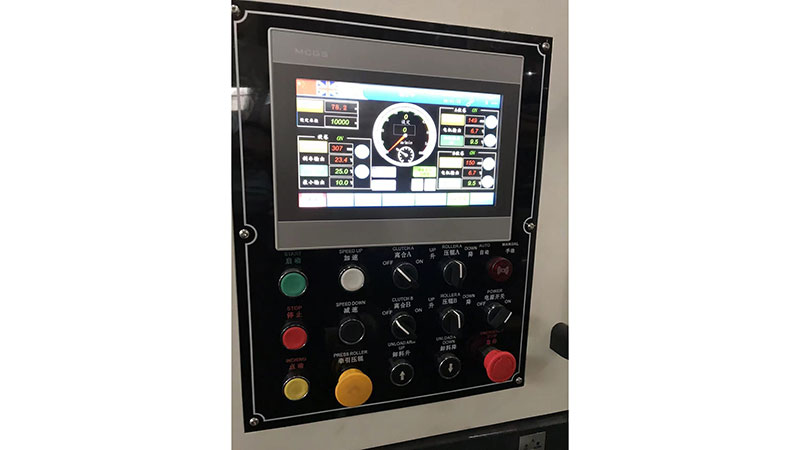

- Control System
The slitting machine comes with Taiwan Weilun HMI touch screen and Siemens control system, which realizes automatic control for slitting speed, unwinding and rewinding tension control, meter counting, etc.
Machine will automatically shut down when the pre-set slitting length is achieved.
-
-
-

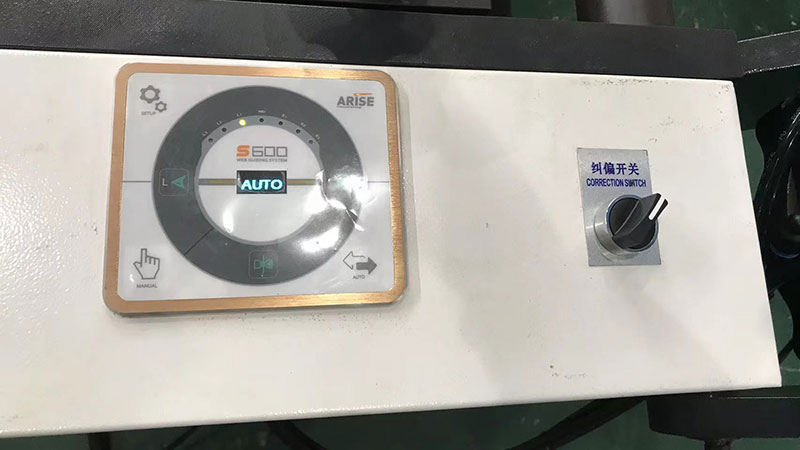

- EPC
-
-
-

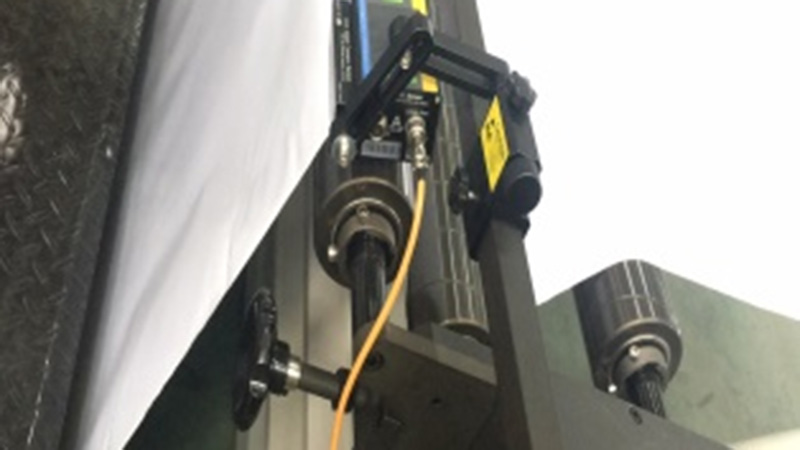

- Photoelectric Sensor
-
-
-

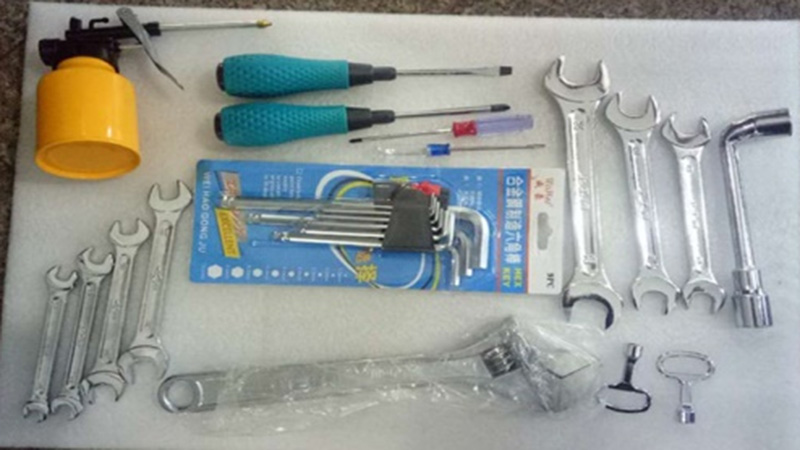

- Tools
-
