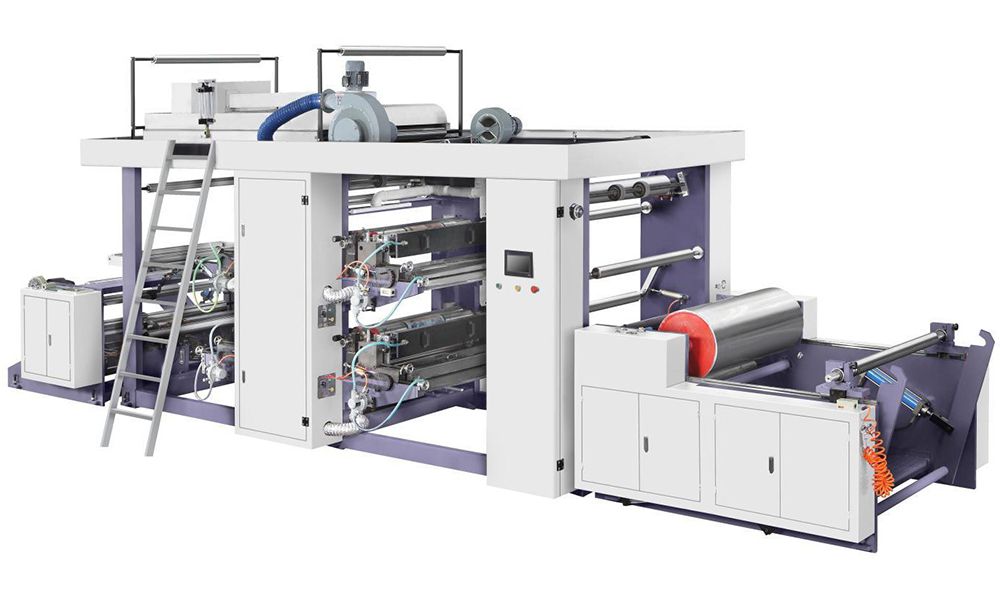

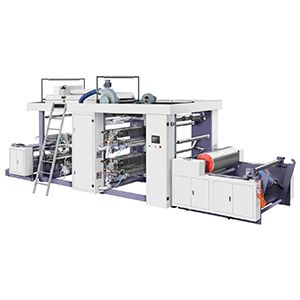

4 Color Flexo Printing Machine XKFP-4 Colors
4 Color Flexo Printing Machine XKFP-4 Colors
Stack Type Flexographic Printing Press for Paper Bag Manufacturing
Xinke offers a range of water-based flexo printing machines with 1 to 6 color printing options. The printing widths are available from 800mm to a super wide width of over 1500mm. This 4 color flexo printing press can achieve different printing size by changing printing cylinder and anilox roll, it is an economic water-based printing solution for printing on paper food bags, shopping bags, T-shirt bags, apparel bags, etc.
Since our establishment in 2000, we have been manufacturing and supplying automated paper packaging equipment and printing machinery for a multitude of industry sectors. Our range of paper bag making equipment is developed based on our long-term experience in the industry of paper bag production and printing. From small paper bags to custom paper carry bags, Xinke can develop a paper bag making solution specially for your business.
- Model:
XKFP4-800
- Max. Printing material width: 800mm
- Max. Printing width: 760mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length range: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model:
XKFP4-1000
- Max. Printing material width: 1000mm
- Max. Printing width: 960mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length range: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model:
XKFP4-1200
- Max. Printing material width: 1200mm
- Max. Printing width: 1160mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length range: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model:
XKFP4-1500
- Max. Printing material width: 1500mm
- Max. Printing width: 1460mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length range: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
| Model | XKFP4-800 | XKFP4-1000 | XKFP4-1200 | XKFP4-1500 |
| Max. Printing Material Width | 800mm | 1000mm | 1200mm | 1500mm |
| Max. Printing Width | 760mm | 960mm | 1160mm | 1460mm |
| Max. Unwinding Diameter | 1300mm | 1300mm | 1300mm | 1300mm |
| Max. Rewinding Diameter | 1300mm | 1300mm | 1300mm | 1300mm |
| Printing Length Range | 230-1000mm | 230-1000mm | 230-1000mm | 230-1000mm |
| Printing Speed | 5-100m/min | 5-100m/min | 5-100m/min | 5-100m/min |
| Register Precision | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm |
| Thickness (plate + double-sided adhesive) | 2.28mm+0.38mm, can be customized according to customer requirements | |||
-
