2 Color Flexo Printing Machine XKFP-2 Colors
- Printed Sample

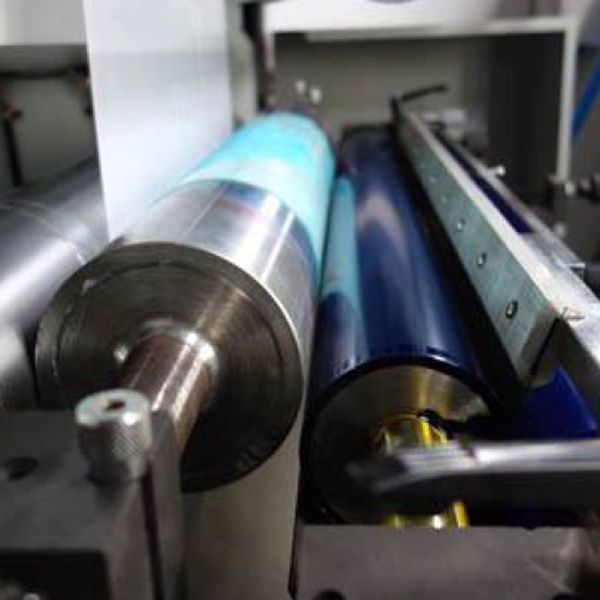

- Chambered Doctor Blades & Ceramic Roller

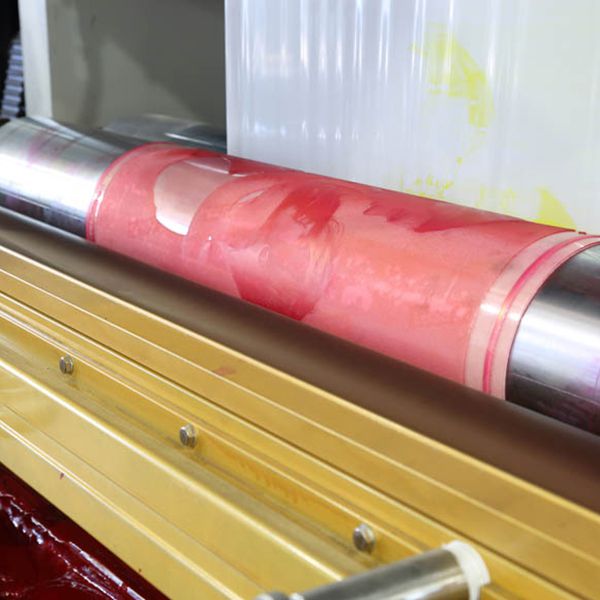

- Single Doctor Blade & Ceramic Roller

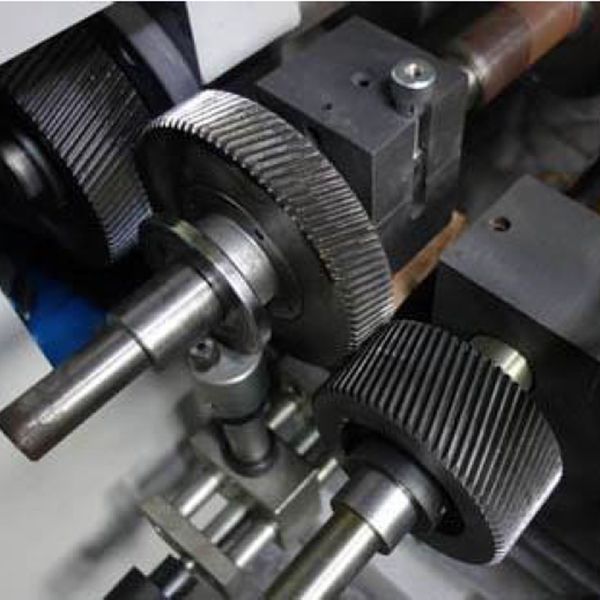

- Helical Gears

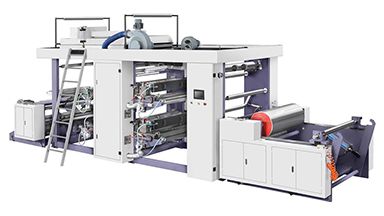

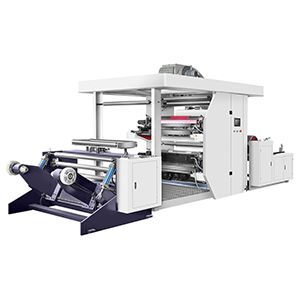

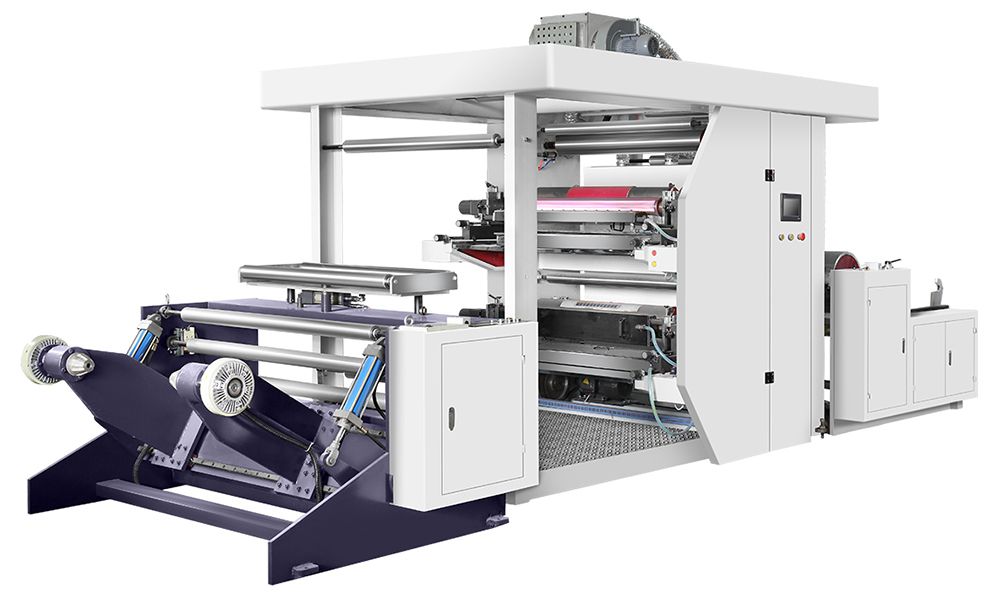

2 Color Flexo Printing Machine XKFP-2 Colors
Stack Type Flexographic Printing Press for Paper Bag Manufacturing
XKFP-2 Colors flexo printing machine is quite suitable for printing on all kinds of paper and non-woven fabric in roll with water based flexo inks. Timing belt guarantees absolutely synchronous transmission of all printing stations, and high-precision planetary gear type structure allows for 360 degree registration adjustment of printing cylinder. Long web path design of the flexo printing press enables the printed materials to be dried with optimal results.
This 2 color flexo printing press is mainly consisted of control unit, unwinding unit, printing unit, drying unit and rewinding unit. It is applicable to print paper roll width ranging from 800 to 1500mm to meet customer's individual production demands.
- Model: XKFP2-800
- Max. Printing material width: 800mm
- Max. Printing width: 760mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model: XKFP2-1000
- Max. Printing material width: 1000mm
- Max. Printing width: 960mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model: XKFP2-1200
- Max. Printing material width: 1200mm
- Max. Printing width: 1160mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
- Model: XKFP2-1500
- Max. Printing material width: 1500mm
- Max. Printing width: 1460mm
- Max. Unwinding diameter: 1300mm
- Max. Rewinding diameter: 1300mm
- Printing length: 230-1000mm
- Printing speed: 5-100m/min
- Register precision: ≤±0.15 mm
- Thickness (plate + double-sided adhesive): 2.28mm+0.38mm Can be customized according to customer requirements
Model | XKFP4-800 | XKFP4-1000 | XKFP4-1200 | XKFP4-1500 |
Max. Printing Material Width | 800mm | 1000mm | 1200mm | 1500mm |
Max. Printing Width | 760mm | 960mm | 1160mm | 1460mm |
Max. Unwinding Diameter | 1300mm | 1300mm | 1300mm | 1300mm |
Max. Rewinding Diameter | 1300mm | 1300mm | 1300mm | 1300mm |
Printing Length Range | 230-1000mm | 230-1000mm | 230-1000mm | 230-1000mm |
Printing Speed | 5-100m/min | 5-100m/min | 5-100m/min | 5-100m/min |
Register Precision | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm |
Thickness (plate + double-sided adhesive) | 2.28mm+0.38mm, can be customized according to customer requirements |
-
