Paper Bag Machinery Manufacturer

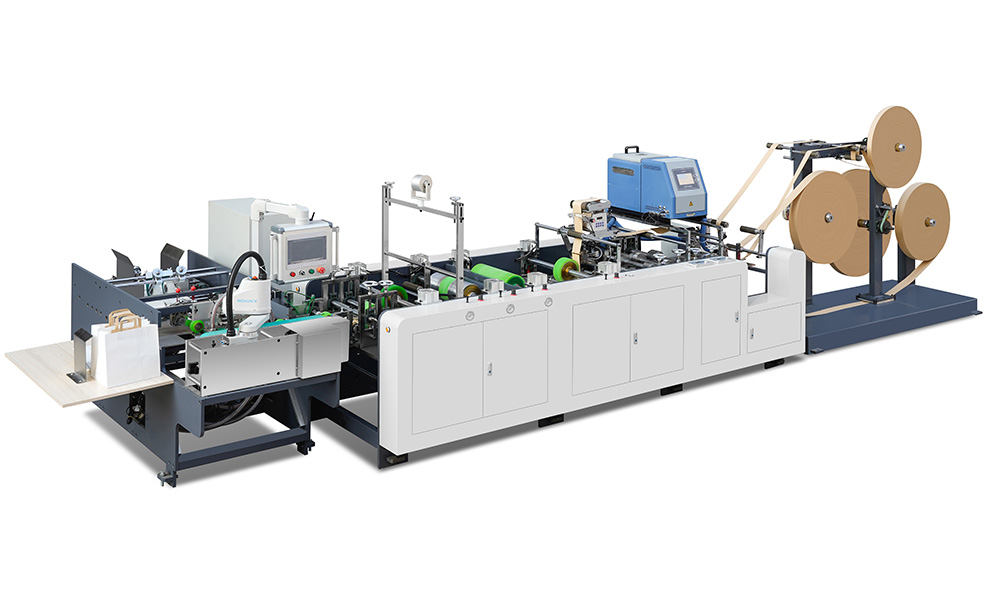

Automatic Flat Handle Making Machine XKBS-01

•

Automatic Flat Handle Making Machine XKBS-01

XKBS-01 automatic flat handle making machine integrates functions of handle making and attaching to the paper bag. By simply placing virgin paper rolls, paper bag and glue, this bag handle making machine can automatically accomplish the entire production process in one pass from handle forming, patch attaching, cutting through to completion of final paper carry bags with handles.

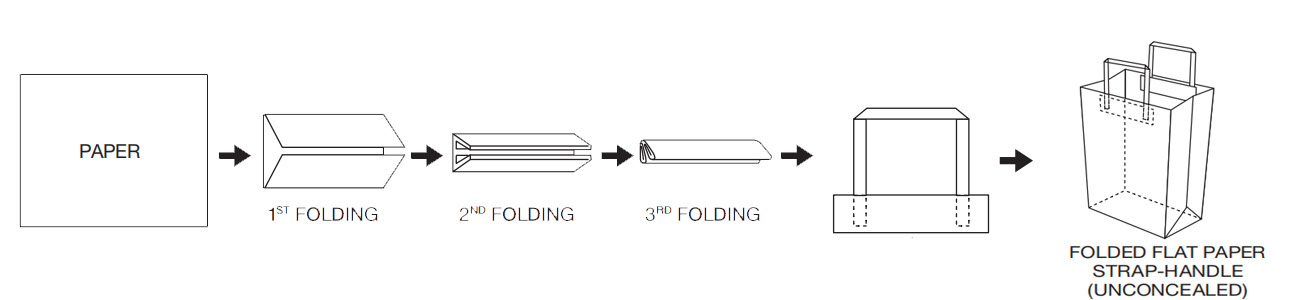

This flat handle making machine can be used in line application with semi-auto paper bag making machine. During the process, four paper rolls will be converted into patch reinforced flat paper handles, and then attached on finished paper bags. It is also configured with functions of automatic counting and gluing, which help further improve the working efficiency of subsequent processing operations.

Request a quote

Download

• Model: XKBS-01
Handle center distance (A): 84mm
Paper handle width (B): 12mm
Paper handle height (C): 100mm
Paper patch width (D): 40mm
Paper patch length (E): 152mm
Paper handle length: 352mm
Paper bag width: 250-400mm
Paper bag length: 250-450mm
Top opening size: Over 130mm
Production speed: 35~40 pcs/min
Servo motor power: 750W
Power supply: 380V, 10kW, 50HZ
Overall dimension (L×W×H): 7000×1600×1500mm

Based in Mainland China, Xinke as a domestically leading paper packaging machine manufacturer has long been engaged in engineering paper bag machinery since its foundation in 2000. We specialize in manufacturing and supplying a complete range of paper bag making machines for the global market. Our product line includes SOS paper bag making machine, V-bottom paper bag making machine, flexo printing press, twisted handle making machine, flat handle making machine, paper rope twisting and rewinding machines, as well as web converting machinery like slitter rewinder. Whether your product is block bottom bags with or without handle, printed paper bags, window bags or flat & satchel paper bags, you can rely on our paper bag machinery to get the job done efficiently.
