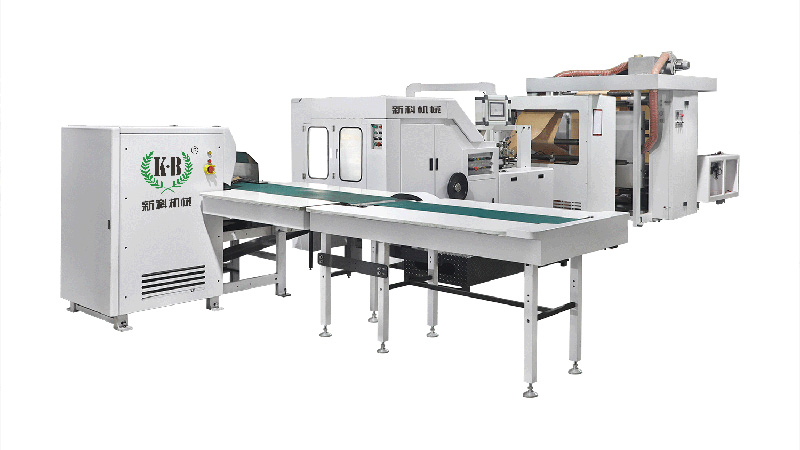

SOS Paper Bag Making Machine with 2 Color Flexo Printer XKFDP-220/330/330B/450B/540

Roll-fed Paper Bag Making Machine for Self Opening Sack (SOS) Bag

Equipped with 2 color in-line printer, our SOS paper bag making machine is capable of turning paper roll into custom printed paper shopping bags. Along with newly developed manufacturing technology, this paper bag machine can produce SOS bags and square bottom gusseted bags in one process from paper roll unwinding, printing, side gluing, forming, cutting, bottom opening, bottom gluing and folding through to completion. With Japan imported Mitsubishi servo motor control system, this SOS bag making machine incurs high precision and exceptional stability, and is an excellent choice for a number of paper bag manufacturers and printing plants.

Request a quote
Download
Paper Bag Making Process

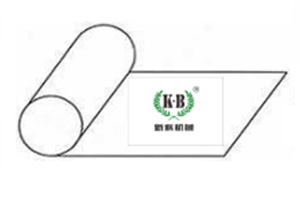

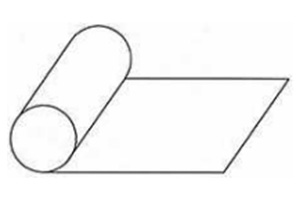

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterDischarge

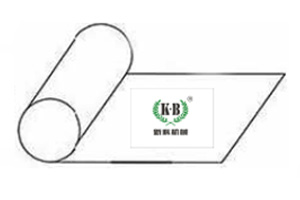

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterInline Printing

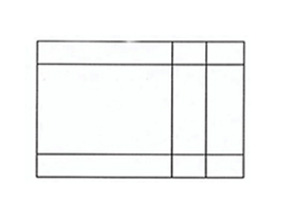

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterSide Glue

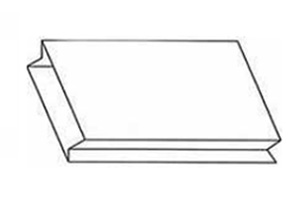

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterForming
  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterCutoff
  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterCrimping

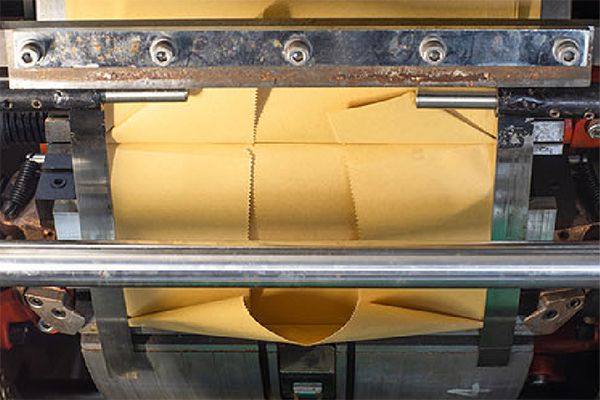

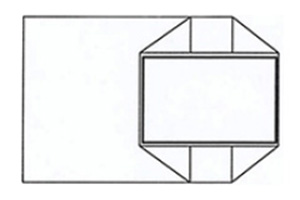

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterBottom opening

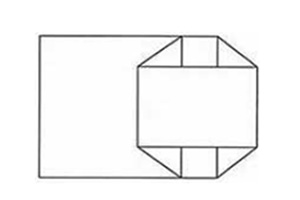

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterBottom glue

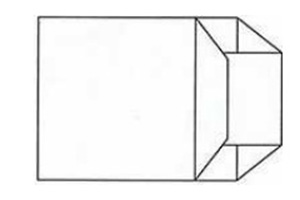

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterBottom folding

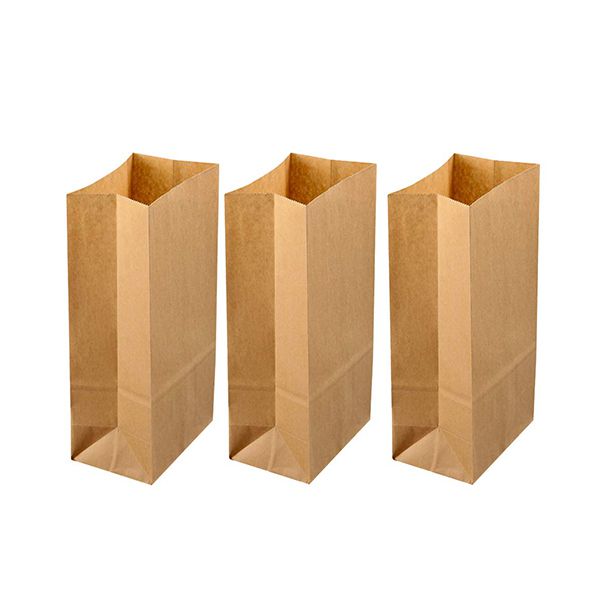

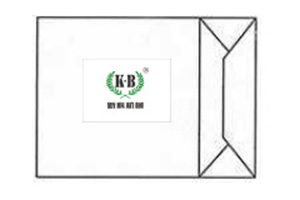

  • SOS Paper Bag Making Machine with 2 Color Flexo PrinterFinished Product
Specifications
Model
XKFD-220
XKFD-280
XKFD-330
XKFD-330B
XKFD-450
XKFD-450B
XKFD-450C
XKFD-540
Bag tube length 190-370mm 270-530mm 270-530mm 320-630mm 285-530mm 420-760mm 420-760mm 420-760mm
Bag length 150-320mm 225-470mm 225-470mm 240-550mm 225-470mm 320-680mm 320-640mm 340-680mm
Bag width 80-220mm 120-280mm 120-330mm 160-370mm 220-450mm 200-450mm 200-450mm 250-540mm
Bottom width 50-120mm 60-160mm 60-180mm 80-200mm 80-200mm 80-240mm 120-260mm 120-260mm
Paper grammage 50-130g/m² 60-160g/m² 60-160g/m² 80-160g/m² 80-160g/m² 80-160g/m² 80-160g/m² 90-160g/m²
Paper roll width 280-710mm 385-910mm 385-1050mm 590-1170mm 630-1370mm 590-1410mm 590-1450mm 770-1640mm
Bag production speed 30-200pcs/min 30-180pcs/min 30-160pcs/min 30-150pcs/min 30-150pcs/min 30-120pcs/min 30-120pcs/min 30-120pcs/min
Printing Section
Max. printing material width 800mm 1000mm 1200mm 1200mm 1400mm 1500mm 1500mm 1700mm
Max. printing width 760mm 960mm 1160mm 1160mm 1360mm 1460mm 1460mm 1660mm
Printing length range 230-800mm 230-800mm 230-800mm 230-800mm 280-800mm 280-800mm 280-800mm 280-800mm
Printing speed 5-100m/min 5-100m/min 5-100m/min 5-100m/min 5-100m/min 5-100m/min 5-100m/min 5-100m/min
Register accuracy ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm ≤±0.20mm
Plate Thickness 1.7 mm + 0.3 mm as standard, including double-sided adhesive tape; customizable upon request
Power requirement 380V, 3-phase, 15kW 380V, 3-phase, 17kW 380V, 3-phase, 21kW 380V, 3-phase, 25kW 380V, 3-phase, 25kW 380V, 3-phase, 27.5kW 380V, 3-phase, 27.5kW 380V, 3-phase, 27.5kW
Machine weight 7300kg 9000kg 12300kg 12300kg 12700kg 14700kg 14700kg 16500kg
Machine dimensions (L×W×H) 10240×2980×2500mm 11940×2980×2500mm 12040×3050×2500mm 12740×3050×2500mm 12440×3150×2500mm 13505×3400×2500mm 13505×3400×2500mm 14725×3500×2500mm
Details
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

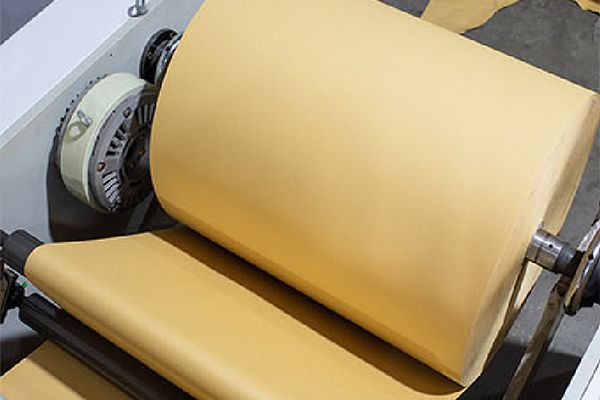

    2. Unwinder
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)
    2. Web Guide
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

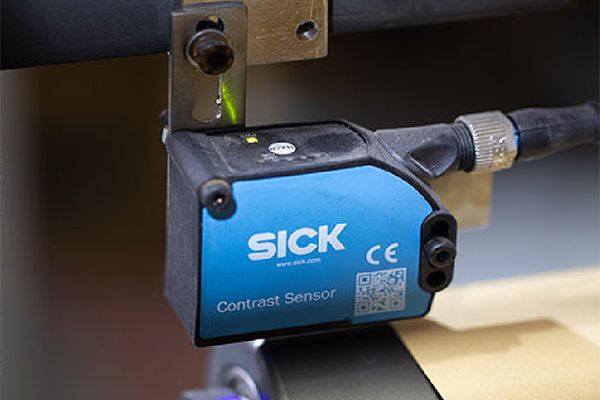

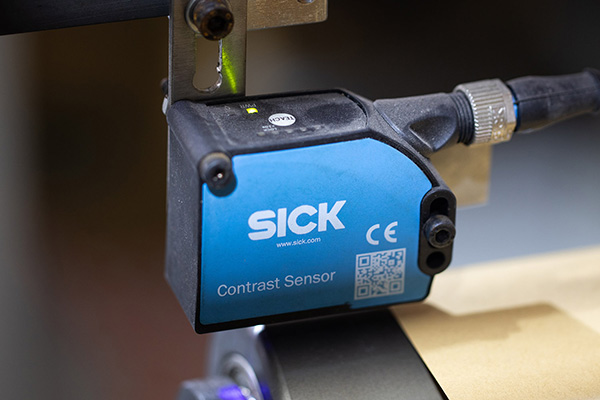

    2. SICK Sensor
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

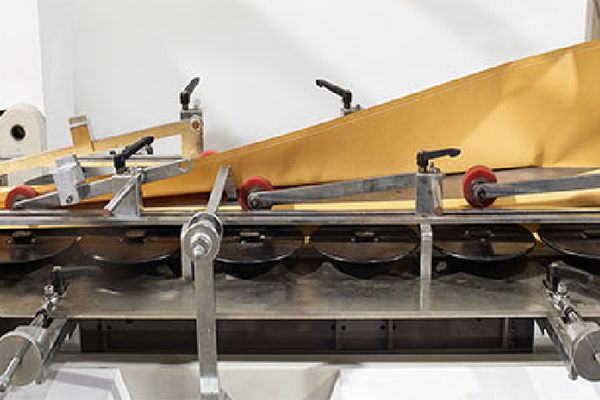

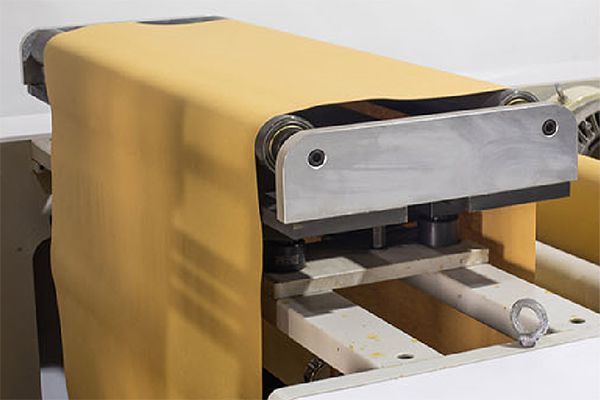

    2. Forming Unit
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

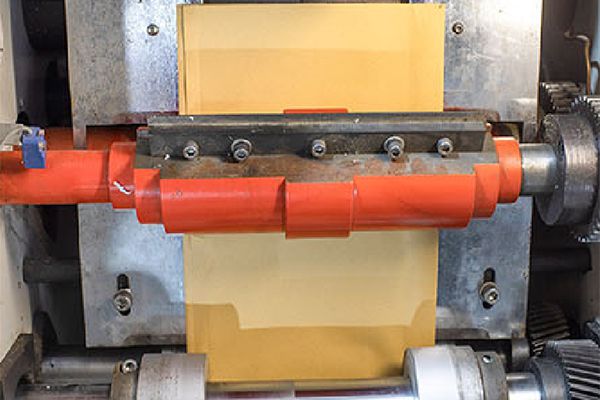

    2. Cutting
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)
    2. Bottom Close
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

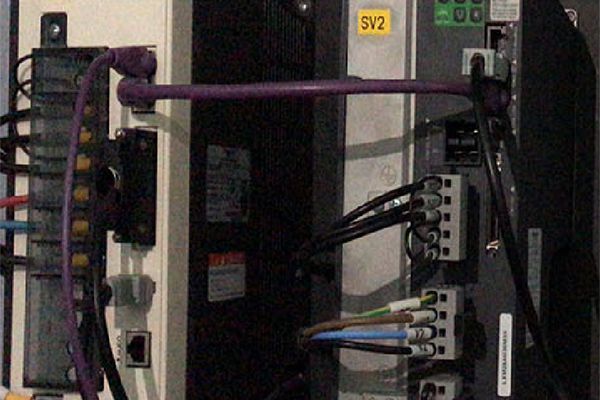

    2. MITSUBISHI Servo
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

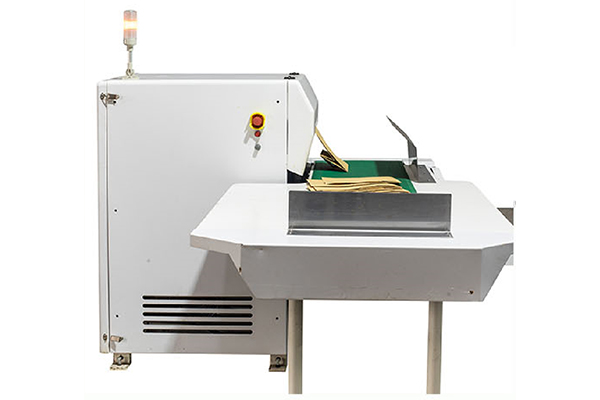

    2. Collecting
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

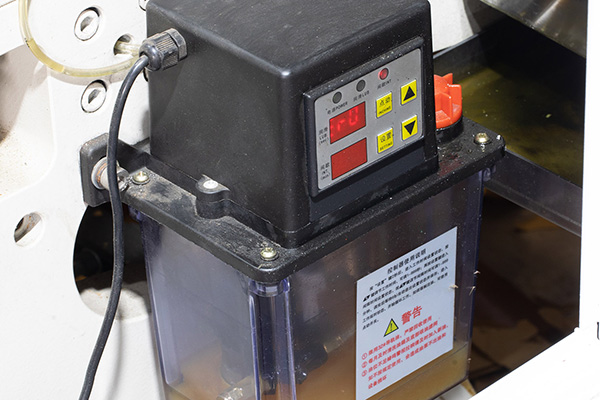

    2. Automatic oil lubrication system
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)
    2. Photoelectric sensor for print control
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

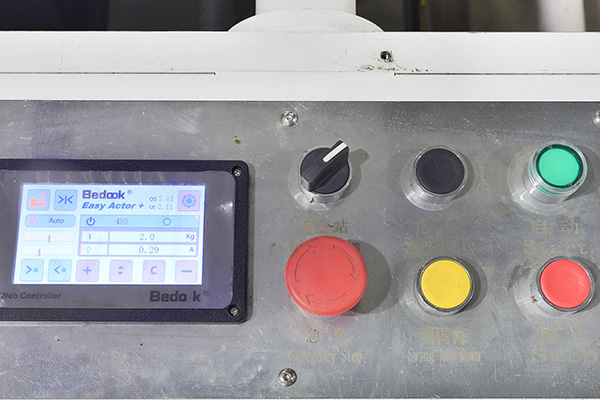

    2. Web guiding system
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

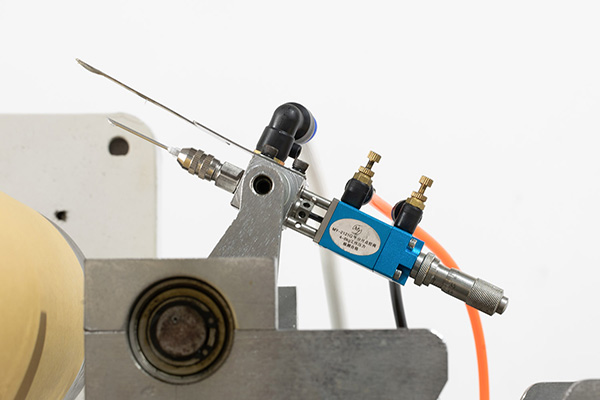

    2. Side glue delivery system
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

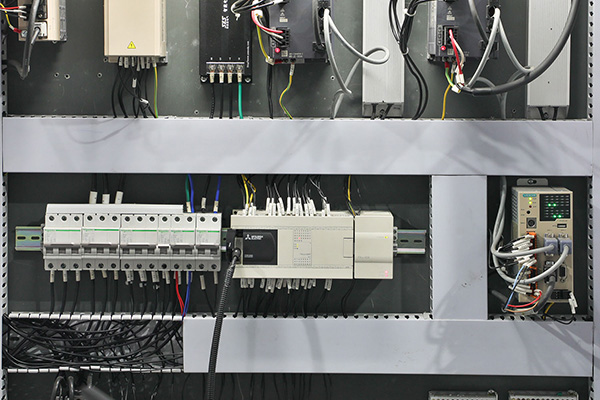

    2. Mitsubishi servo system
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

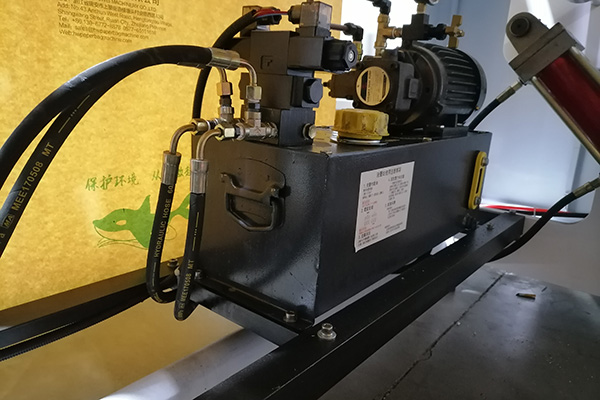

    2. The loading/unloading of the paper roll is performed with a hydraulic lift. The unwinding section adopts constant tension control.
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

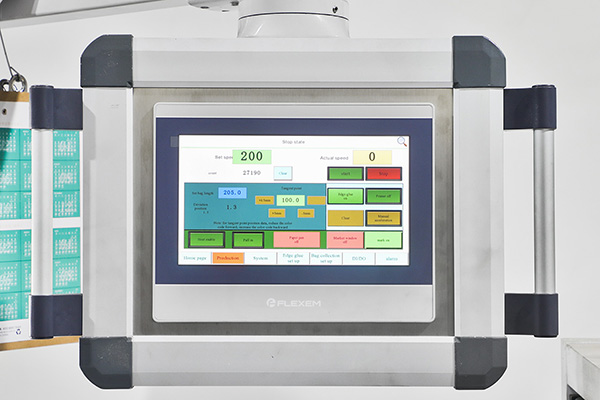

    2. Weiniew touch screen from Taiwan provides easy operation and control.
    1. SOS Paper Bag Making Machine (with 2 Color Flexo Printer)

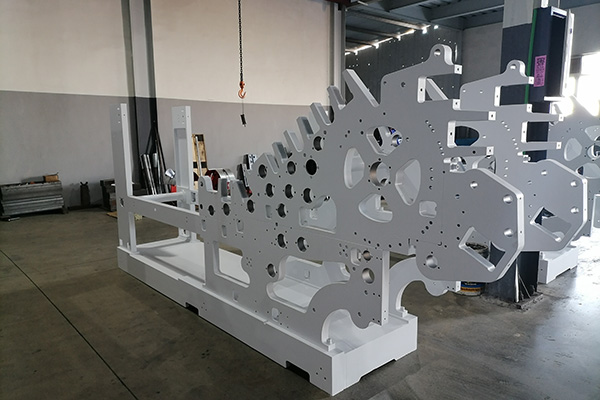

    2. Heavy duty machine frame and base
